Del Mar Photonics offers new Pockels cell based on Rubidium Titanyle Phosphate RbTiOPO4 crystal

Pismo Pulse Picker 8/1-RTP - request a quote

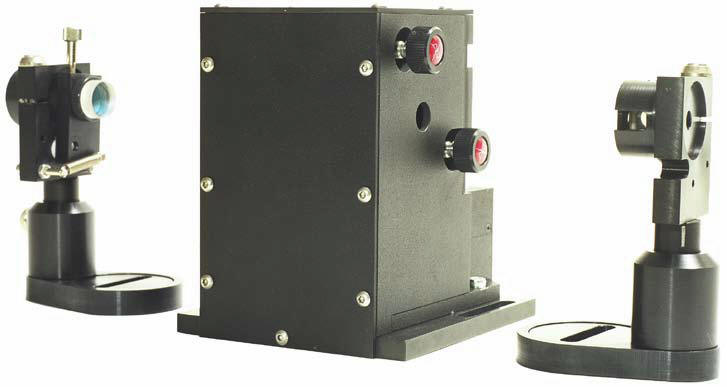

Pockels cell OG8/1-RTP with integrated HV generator - request a quote
Crystal: RTP, 6x6x10 mm3, ARC 1500-1600 nm (clear aperture 5 mm)
HV pulse amplitude: up to 8 kV (HV pulse has the amplitude ~8kV with duration 10 ns at level 10% of maximum)
Repetition rate: 0 1 kHz (external or internal trigger)
Optical source rep.rate: 20-100 MHz
Optical synchronization input: optical (internal fiber coupled photodetector with 1.5 m length fiber)
System transmission: >80% @ 1000-1600 nm
Optical scheme: lambda/2
Contrast ratio: >1:1000

Also included:
Two polarizers with mounts
1.5-meter optical fiber for synchronization

The control system has USB interface and LabView-compatible software, as well as easy stand-alone controls.


Pockels cell OG10/1 with integrated HV generator



Pismo 10/1-8/1-RTP complete pulse picker system with two Pockels cells request a quote
Pismo pulse picker for laser wavelength: 1025~1045 nm

Pismo Pulse Pickers brochure - Pismo 8-1-1 manual - Del Mar Photonics







RTP single crystal (Rubidium Titanyle Phosphate RbTiOPO4) is an isomorph of KTP crystal that has transmission range from 350nm to 4500nm and is used in nonlinear and electro optical applications.

request q quote for RTP single crystal
