Ytterbium-Doped Femtosecond Solid-State Laser Tourmaline Yb-SS1500\150 - request a quote

Pulse duration (FWHM), fs: <100
Wavelength, nm (fixed): 10582
Output power, W: >1.6
Repetition rate, MHz: 70
Pulse energy: >22 nJ
Output power stability: 1%
Spatial mode: TEMoo
Polarization, linear: >100:1 (horizontal)



Yb-based femtosecond fiber lasers

Tourmaline (basic model)

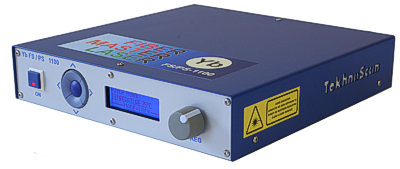

Wavelength-tunable femto-picosecond Yb-doped fiber laser Tourmaline Ytterbius-1100
request a quote


Tourmaline Ytterbius-1100 - pulsed femtosecond ytterbium fibre laser with the possibility of run-time detuning of the output wavelength within the range 1060-1115 nm, pulse duration: 400 fs/10 ps (a femtosecond pulse on a picosecond pedestal), pulse repetition frequency: 5-10 MHz, average output power: up to 70 mW

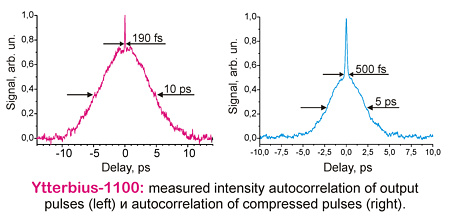

Tourmaline Ytterbius-1100 features unique combined femto/pico-second pulses with the output central wavelength tuneable within a 55-nm wide spectral range from 1060 to 1115 nm, which is very helpful in solving many research and applied problems. Laser Tourmaline Ytterbius-1100 may be shipped together with an optional Raman converter module for efficient spectral conversion of its unique combined ultra-short radiation pulses into longer-wavelength spectral domain of 1150 to 1550 nm with the possibility to tune the radiation line around the set wavelength within this range.



Applications:
- time-resolved spectroscopy
- studies of chemical kinetics and dynamics
- Raman spectroscopy
- micro- and nano-photonics
- supercontinuum generation
- fluorescence-lifetime imaging microscopy
- optical DNA sensing technology
- amplifier seeding
- sub-systems for OEM integration

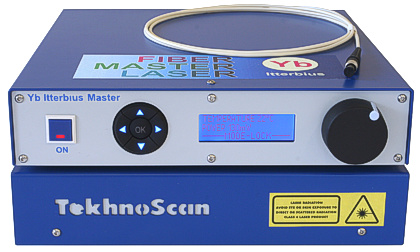

High-energy Yb-doped all-fiber femto-, pico-, nano-second laser Tourmaline Ytterbius-Master
request a quote

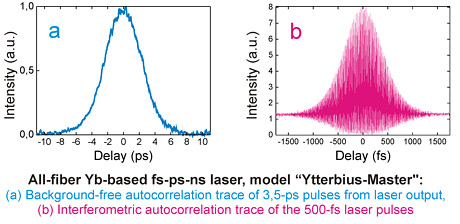

Tourmaline Ytterbius-Master - all-fibre mode-locked ytterbium laser with the possibility to generate light pulses with duration in the range of 500 fs to 3 ns.

Tourmaline Ytterbius-Master - all-fibre mode-locked ytterbium laser with the possibility to generate light pulses with duration in the range of 500 fs to 3 ns. This means that Tourmaline Ytterbius-Master allows a very broad range spanning femtosecond, picosecond, and nanosecond pulses. Not only does this laser have an exceptionally broad range of output pulse durations, Tourmaline Ytterbius-Master also delivers output in a very wide range of pulse repetition rates from 25 MHz to less than 100 kHz. Another very important feature of this laser is its output pulse energy, record-high for mode-locked master fibre oscillators, reaching up to 5 uJ. This ultra-fast fibre ytterbium laser is, indeed, a Master of its trade!

The working spectral range of laser Tourmaline Ytterbius-Master amounts to 1070 +/-10 nm for the fundamental wavelength and 535 +/- 5 nm when used with the radiation frequency doubler. Tourmaline Ytterbius-Master may be also shipped with two optional sub-systems: fibre optical amplifier, which allows to increase the energy of laser output pulses up to 100 uJ, and scanned auto-correlator FS-PS-Auto, allowing duration measurement of ultra-fast light pulses within the range from 10 fs to 30 ps, both by Tekhnoscan.



Features:
- new concept high-energy mode-locked fiber laser without Q-switching and cavity dumping techniques;
- record-breaking ultra-low repetition rate for mode-locked lasers: up to 30 kHz;
- super-wide range of output pulse width: from femtosecond to nanosecond.
Applications:
- ultrafast spectroscopy
- terahertz or t-ray generation
- frequency combs
- microfabrication
- direct-write of optical waveguides
- fiber Bragg grating writing
- nano-photonics
- high-resolution multiphoton tomography
- fluorescence-lifetime imaging microscopy
- optical DNA sensing technology
- microsurgery
- high capacity optical data storage
- amplifier seeding
- sub-systems for OEM integration


request a quote
