Del Mar Photonics offer a range of competitively priced UHV viewports , Conflat, ISO or KF including a variety of coatings to enhance performance.
When you send us your inquiry please fill out the following form to indicate all important specifications and e-mail it to us with your inquiry.
Presently we have following view IR UHV view ports for which we wanted to have
Broad Band Anti-reflection (BBAR) coating for IR wavelength range:
Material Size Quantity Clear Aperture / Requirement for BBAR
Window size In wavelength range
ZnSe 63 CF 2 Nos. 50 mm 2 micron to 12 micron
CaF2 63 CF 2 Nos. 50 mm 2 micron to 10 micron
Sapphire 63 CF 3 Nos. 40 mm 2 micron to 10 micron
Sapphire 100 CF 2 Nos. 80 mm 2 micron to 10 micron
We can send these view ports to you then you need to coat as mentioned.
You are taking this type of anti reflection coating job? If yes, then send me estimated price for BBAR coating. If no, then can you suggest us who can do this (any company)?
I have few more questions:

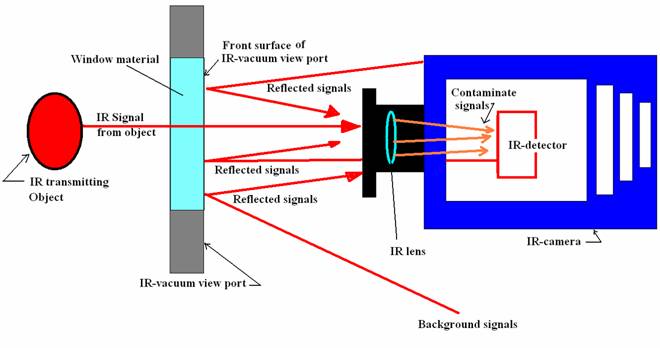

See the following schematic diagram
We are facing the main problem of the reflected IR signals from the surrounding objects. We are using IR-camera having the detector spectral response in 2 micron to 5 micron. When IR-camera placed in front of the IR vacuum view port, we found that the front surface of the vacuum view port act as mirror for 2-5 micron wavelength range having reflectivity ~ 10%. This means IR-camera also shows the reflected signals of the surrounding material along with the object under observation due to reflection from front surface of window material. Even the IR waves transmitted from the IR-detector is also get detected by detector it self! If we increase the transmission and decrease the reflective with BBAR coating then this problem can overcome. Do you have any other solution? Follow are the related question:
1. What would be maximum transmission that we can achieve with BBAR for 2 to 5 micron?
2. BBAR coating is provided on both side of the window material or one side?
3. Is it not possible to achieve 98%-99% transmission in 2 micron - 5 micron IR-band?
Del Mar Photonics comment:
We have Rav <1% and/or Rav < 2% @ 2-5 um AR in regular production on ZnSe, ZnS,
CaF2, Al2O3, MgF2, BaF2, Si, Ge, ALON, AMTIR-s, etc., etc.
However, we always take exception for spectrum in the vicinity of water absorption line at 2.7 um, which affects the coating performance from ~ 2.3 – 3.35 microns; no guaranties for the coating performance in this region
