The ARMOR X7
Rugged, Handheld Tablet request a quote

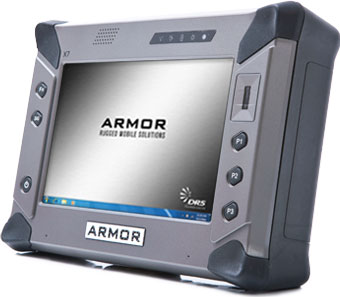

The ARMOR X7, a handheld tablet computer that’s small in size and weight but big on ruggedness.
The ARMOR X7 is lightweight, has a sunlight-readable display and is loaded with connectivity features, so it's ideal for a range of on-the-go computing needs. It's also rugged enough to stand up to the most demanding environments. The X7 is rated MIL-STD-810G for extremes in vibration, shock and drops from six feet. Plus it's highly resistant to both dust and moisture, earning an IP65 rating for ingress protection.
The ARMOR X7 Compact Rugged Tablet
request a quote
Introducing the ARMOR X7, a compact tablet computer that is small in size and weight but big on ruggedness. The ARMOR X7 is loaded with the features you want in a lightweight mobile tablet like a range of WWAN/Cellular connectivity options, Bluetooth® wireless, integrated GPS and full 802.11 a/g/n WiFi connectivity.
The X7 is also rugged enough to stand up to the most demanding environments. It’s rated MIL-STD-810G for extremes in vibration, shock and drops from six feet. Plus it’s highly resistant to both dust and moisture, earning an IP65 rating for ingress protection.
The ARMOR X7’s small form factor, built-in hand grips, sunlight-readable 7-inch display, and 2.8-pound weight make it ideal for any task that requires continual data entry or information exchange, mobility, ease of use and a high degree of durability.
Lightweight and compact
A wide range of WWAN connectivity protocols
Integrated 802.11 a/g/n WiFi, Bluetooth and GPS
Intel® N450 Pineview-M 1.66 GHz Single Core Processor with Intel Speedstep®
7-inch WSVGA , Sunlight-readable, dual mode display
Sealed, fanless design
Certified to MIL-STD-810G and IP65
Request Armor X7 for use with in mobile applications of femtosecond laser and other products from Del Mar Photonics, such as
Terahertz systems, set ups and components New band pass and long pass THz optical filters based on porous silicon and metal mesh technologies. Band pass filters with center wavelengths from 30 THz into GHz range and transmissions up to 80% or better. Standard designs with clear aperture diameters from 12.5 to 37.5 mm. Long pass filters with standard rejection edge wavelengths from 60 THz into GHz range. Maximum transmission up to 80% or better, standard designs at 19.0 and 25.4 mm diameters. Excellent thermal (from cryogenic to 600 K) and mechanical properties THz products: Portable Terahertz Source THz Spectrometer kit with Antenna THz transmission setup THz time domain spectrometer Pacifica fs1060pca THz time domain spectrometer Pacifica fs780pca THz detectors: Golay cell and LiTaO3 piroelectric detectors PCA - Photoconductive Antenna as THz photomixer Pacifica THz Time Domain Spectrometer - Trestles Pacifica Holographic Fourier Transform Spectrometer for THz Region Wedge TiSapphire Multipass Amplifier System - THz pulses generation Terahertz Spectroscopic Radar Mobile System for Detection of Concealed Explosives Band pass filters with center wavelengths from 30 THz into GHz range Long pass filters with standard rejection edge wavelengths from 60 THz into GHz range Generation of THz radiation using lithium niobate Terahertz crystals (THz): ZnTe, GaAs, GaP, LiNbO3 - Wedge ZnTe Silicon Viewports for THz radiation Aspheric collimating silicon lens - Aspheric focusing silicon lens
|IntraStage lowers the cost
of test data management!
Struggling with gigabytes or terabytes of test data?
IntraStage easily transforms test data from disparate sources into web-based quality metrics and engineering intelligence you can use.
us today to discuss your test management requirements and specifications of your
Del Mar Photonics featured components
Del Mar Photonics continuously expands its components portfolio.
Prisms for Concentrating Photovoltaic Systems (CPV)
Solar cells made of compound semiconductors such as gallium arsenide are very expensive. Usually very small cells are installed and various means such as mirrors, lenses, prisms, etc..are used to concentrate sunlight on the cells. Concentration photovoltaic technology (CPV) uses the solar radiation with an efficiency of 40%, double that of conventional solar cells
Del Mar Photonics design custom Concentrating Photovoltaic Systems (CPV) and supply variety of the optical components for CPV such as solar prisms shown in the picture.
Axicon lens also known as conical lens or rotationally symmetric prism is widely used in different scientific research and application. Axicon can be used to convert a parallel laser beam into a ring, to create a non diffractive Bessel beam or to focus a parallel beam into long focus depth.
Del Mar Photonics supplies axicons with cone angles range from 130° to 179.5° for use with virtually any laser radiation. We manufacture and supply axicons made from BK7 glass, fused silica and other materials.
download brochure - request a quote
Rutile (TiO2) coupling
Del Mar Photonics offers optical elements made of high quality synthetically grown Rutile Titanium Dioxide crystals. Rutile’s strong birefringency, wide transmission range and good mechanical properties make it suitable for fabrication of polarizing cubes, prisms and optical isolators. Boules having high optical transmission and homogeneity are grown by proprietary method. Typical boules have 10 - 15 mm in dia. and up to 25 mm length. Optical elements sizes - from 2 x 2 x 1 mm to 12.7 x 12.7 x 12.7 mm. Laser grade polish quality is available for finished elements. So far we the largest elements that we manufactured are 12 x15 x 5 mm, in which optical axis is parallel to 15 mm edge, 5 mm is along beam path, 12 x 15 mm faces polished 20/10 S/D, one wave flatness, parallelism < 3 arc.min. (better specs. available on request).
more details - download brochure - request a quote - properties incl. refractive index
Sapphire Circular Windows - Square & Rectangle - Rods
Sapphire & Ruby Rings - Sapphire & Ruby Balls - Sapphire & Ruby Nozzles
Sapphire Lenses - Ball & Seat - Special Products - Sapphire Vee & Cup Jewels
Sapphire Ceramics - Ceramic Sleeves - Ceramic Holes - Ceramic Rods
Sapphire & Ruby Orifices - Sapphire & Ruby Tubes - Sapphire Components
Sapphire Half Round Rod - Sapphire Windows - Rods ＆ Tubes - Special Part
Sapphire Prism - Sapphire Chisel - Sapphire Square Rod
Del Mar Photonics offer a range of competitively priced UHV viewports , Conflat, ISO or KF including a variety of coatings to enhance performance. Del Mar Photonics viewports are manufactured using advanced techniques for control of special and critical processes, including 100 percent helium leak testing and x-ray measurements for metallization control. Windows Materials include: Fused silica, Quartz , Sapphire , MgF2, BaF2, CaF2, ZnSe, ZnS, Ge, Si, Pyrex. Standard Viewing diameters from .55" to 1.94 ".
Coating - a range of custom coatings can applied - which include
- Single QWOT
- Broad Band AR
- V coatings
- DLC (Diamond like coating)
more details - request a quote
NARROW-BAND HOLOGRAPHIC FILTERS are intended for suppression of powerful beams in research and in engineering, in particular, in laser spectroscopy, and also for protection from blinding and damaging by laser radiation various photo receiver devices and operator's eyes.
Unlike conventional interference filters, which are made by vacuum evaporation techniques, holographic filters are fabricated by recording interference patterns formed between two mutually coherent laser beams. Since all layers are recorded simultaneously within a thick stack, the optical density of the notch filter is high and its spectral bandwidth can be extremely narrow. Also, since the layering profile is sinusoidal instead of square wave, holographic notch filters are free from extraneous reflection bands and provide significantly higher laser damage thresholds.
Thyratrons are used in
such devices as radars with different power levels, high-power pulsed
technical, electrophysical, medical devices and lasers. Sophisticated
design and high quality ceramic-metal envelope determines long lifetime
and very accurate and reliable operation of hydrogen thyratrons under wide range of environmental
- pulsed lasers power supplies
- medical apparatus
- electrophysical instrumentation
Triggered Three-Electrode Spark Gap Switches are ceramic-metal sealed off gas discharge trigatron-type devices with a co-axial trigger electrode. These Gas Discharge Tubes contain no mercury and, due to an advanced design, feature high reliability and a long lifetime being operating under wide range of environmental conditions.
- pulsed installation for processing materials
- installations with plasma focus
- pulse power supplies for lasers and other pulse equipment
- medical apparatus such as lithotriptors and defibrillators
- processing systems for petroleum wells
Del Mar Photonics supply trigger transformers for triggered spark gaps and other applications. Contact us to today to discuss your application or requesta quote.
Trigger Transformers are used to provide a fast high voltage pulse up to 30kV/µs and more. This high voltage pulse is applied to the trigger electrode to initiate switching action in the three-electrode spark gaps. Either positive or negative pulses can be obtained from all of the transformers.
