Del Mar Photonics


Trestles CW (w/out pump laser) (request a quote)
Ti:Sapphire CW oscillator
Tuning range, nm: 700-1000*
Output power, mW: 1000 (at 790 nm, 6W pump)
Bandwidth: < 45 GHz
< 20 GHz (with 1 etalon**)
< 2 GHz (with 2 etalons**)
Spatial mode: TEMoo
Divergence: < 2 mrad
Polarization: horizontal
Includes 3-plate motorized BRF
* - complete range with 3 mirror sets (1 set included)
** - must be purchased separately

Example of application: Trapping nanoshells


Brooke Hester is a PhD student working in the Optical Tweezers Lab at the National Institute of Standards and Technology (NIST). In this video she tells about trapping polystyrene spheres and nanoshells using Trestles CW - continuum wave tunable Ti:Sapphire laser from Del Mar Photonics.

Trestles brochure (both femtosecond and CW versions)

We also offer Tretsles CW Ti:Saphire laser with build in pump laser with pump power from 3 to 10 Watt.

TRESTLES CW OPUS Specifications (request a quote)
Ti:Sapphire CW oscillator
Tuning range, nm: 700-1000*
Output power (free-space), mW: 300 (@800 nm, 3W pump)
Bandwidth: <45 GHz
<20 GHz (with 1 etalon**)
<2 GHz (with 2 etalons**)
Spatial mode: TEMoo
Divergence: <2 mrad
Polarization: horizontal
* - manually controlled birefringent filter for
wavelength tuning is included
** - not included, please see below
Fiber-coupled output: single-mode fiber 700-1300 nm,
4 um, 1 m FC-FC
Output power at fiber output: >10 mW@700-1000 nm

OPUS DPSS PUMP LASER, 3 W OUTPUT
POWER 3 W
WAVELENGTH 532 NM
BEAM SIZE 2.0 MM
SPATIAL MODE TEM00
M SQUARED < 1.1
POWER STABILITY < 0.4 % RMS
NOISE < 0.4% RMS

Accessories
3BRF-TM Upgrade - Upgrade to motorized 3-plate birefringent filter for USB wavelength tuning
Thick (thin) etalon with mount (manual tuning)
Thick (thin) etalon with mount (step motor controlled tuning)
Closed-loop chiller


Trestles CW available free free space as well as fiber-coupled output

Fiber-coupled output: single-mode fiber 700-1300 nm, 4 um, 1 m FC-FC
Output power at fiber output: >10 mW@700-1000 nm



Trestles CW Opus continuum wave Ti:Sapphire laser with built in 3 Watt DPSS laser

Del Mar Photonics is your one stop source for ultrafast (femtosecond) as well as continuum wave (CW) narrow linewidth Ti:Sapphire lasers

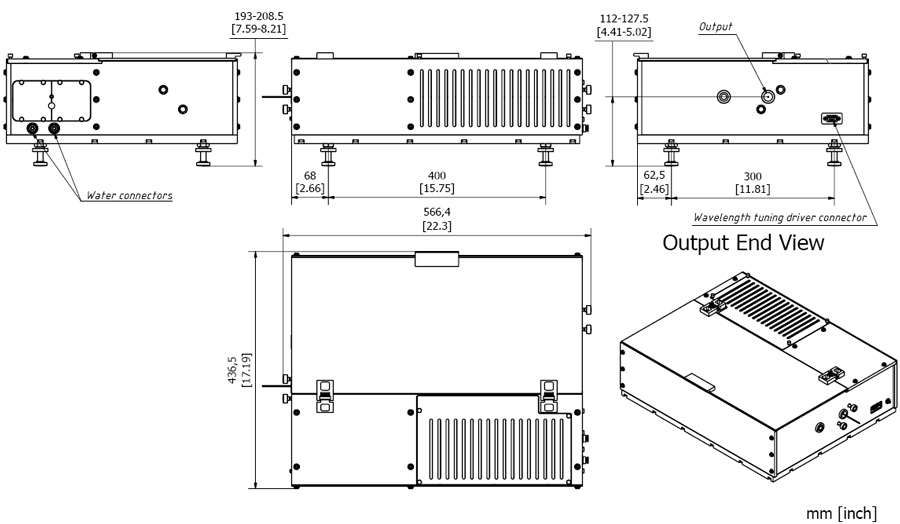

Dimensions of Trestles CW Opus continuum wave Ti:Sapphire laser with built in 3 Watt DPSS laser

The Trestles CW Opus weight is about 20 kg.


DPSS pump laser control unit

Features

* RS232 control
* large LCD
* advanced funtionality
* analogue modulation
* power failure LED
* emission status LED
* remote interlock
* full switch-mode operation
* silent operation
* compact, low-profile design

Supply
voltage 12V dc
frequency dc input
Required Clearance
* 100 mm at rear

Connections
mains 12V dc input
modulation 9 way D-type
RS232 9 way D-type
umbilical 25 way D-type

Modulation
input range 0 - 4 V
rise time 10 usec
bandwidth 0 - 30 kHz






Chiller - weight 11 kg, W 220mm x D 333mm x H 390mm



Del Mar Photonics offers new Trestles fs/CW laser system which can be easily switched from femtosecond mode to CW and back.
Having both modes of opeartion in one system dramatically increase a number of applications that the laser can be used for, and makes it an ideal tool for scientific lab involved in multiple research projects.

Typical specifications are:

Trestles fs/CW laser system
Ti:Sapphire femtosecond oscillator with CW operation option
Spatial mode: TEMoo;
Polarization: linear horizontal;
fs mode:
Tuning range (@10W pump): 750-850 nm;
Output power (@10W pump, 800 nm): >1500 mW;
Repetition rate: 80 MHz;
Pulse duration: <100 fs;
CW mode:
Tuning range (@10W pump): 750-850 nm;
Output power (@10W pump, 800 nm): >2000 mW in CW;
Linewidth (with two etalons): <2 GHz
Also included:
Thermostabilized breadboard;
Electronic starter with TTL output for mode-locked mode observation;
USB-controlled tuning slit for wavelength tuning in fs mode;
3-plate USB-controlled birefringent Lyot filter;
Two motorized USB-controlled etalons for linewidth control



Del Mar Photonics supply Trestles lasers as stand alone system, or as a one-box system with built-in DPSS pump laser.
The price of the system with DPSS pump depends on required output power.

Request a quote - indicate required output power in your inquiry!

The standard tuning elements indicated below are used in CW Ti:Sapphire lasers such as Trestles CW or Trestles fs/CW.

Those elements are also sold separately as standrad items or as a custom made components.

1) Thick etalon - request a quote
Thickness - 3 mm, diameter - 20 mm. Surface quality: Ð=1-2, N<1, ΔN<0.1,
λ/10, plane parallelism better than 10''. Thickness accuracy 5 um.



2) Thin etalon - request a quote
Thickness - 200 um, diameter - 15 mm. Surface quality: Ð=1-2, N<1, ΔN<0.1,
λ/10, plane parallelism better than 10''. Thickness accuracy 5 um.



3) Birefringent filter BRF - request a quote
