Del Mar Photonics releases femtosecond Er-doped fiber laser - OptoIQ

Sep 30, 2009

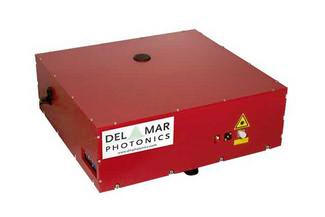

Buccaneer SHG is a femtosecond Er-doped fiber laser with built in high-efficiency second-harmonic generator based on PPLN crystals. The laser produces pulses with a duration shorter than 120 fs at an average power of greater than 50 mW at 780 nm. It is available with any fixed repetition rate of 50, 80 and 100 MHz. Femtosecond pulsed lasers are used in a growing number of applications in physics and life sciences, including material processing, multiphoton imaging, pump-probe spectroscopy, and parametric generation. Modelocked femtosecond Er-doped nonlinear optical fiber offers an alternative to conventional Ti:sapphire and Cr:forsterite femtosecond laser systems, providing robust and stable operation without the need for frequent realignment.
Del Mar Photonics
San Diego, CA
www.dmphotonics.com

Femtosecond fiber laser

Buccaneer SHG is a femtosecond Er-doped fiber laser with built in high-efficiency second harmonic generator based on PPLN crystals. Buccaneer SHG produces laser pulses with a duration < 120 femtoseconds at an average power > 50 mW at 780 nm. It is available with any fixed repetition rate of 50, 80 and 100 MHz.
New femtosecond source is priced under 50 thousand dollars. (request a quote)
Specifications:

Buccaneer SHG femtosecond Er-doped fiber laser with built in second harmonic generator - request a quote
Wavelength: 7805 nm (fixed) or 156010 nm (fixed)
Pulse Width (FWHM): <120 fs
Average output power: >50 mW
Repetition rate: 50 MHz, 80 MHz or 100 MHz(specify when order)
Pulse energy: 1 nJ
Pulse shape: Gauss
Spatial mode: TEM00
Dimensions:
Laser head, mm: 350x370x140
Control unit, mm: 230x200x130
Crystal oven control unit, mm: 290x150x80
