Del Mar Photonics offers variaty of optical components made from high quality
synthetic crystal quartz.
Send us your inquiry today to receive a quote!

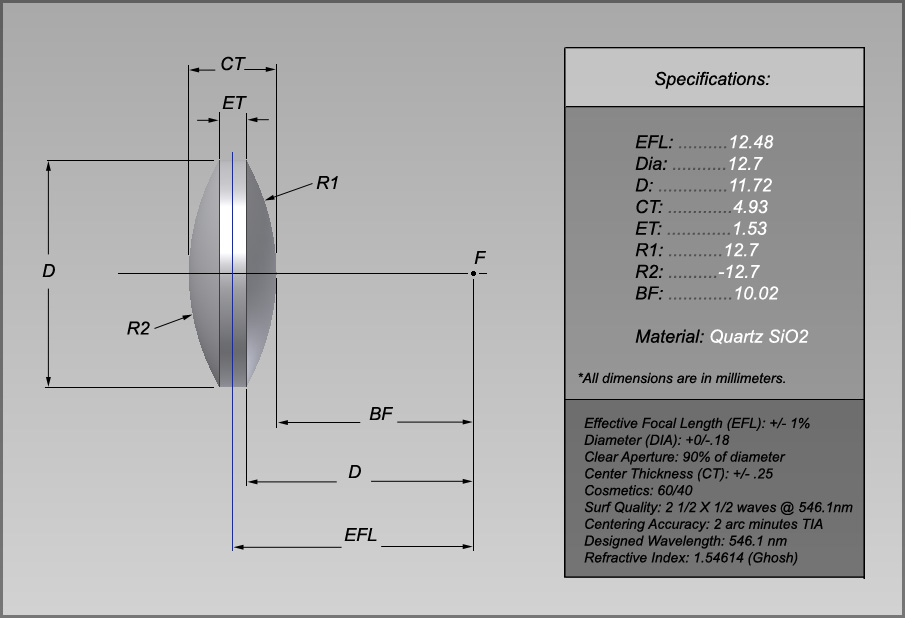

One of the examples of the custom crystal quartz lens in presented below. Request a quote for crystal quartz lens!
I would like to receive a quote based on the drawing I have attached for a crystal quartz lens. The main requirement for this lens is that the material used be of a natural or cultured crystal quartz (i.e., not fused silica).
I would like the optical axis of the crystal quartz to be parallel
with the principal axis of the lens - so that both their orientations
are perpendicular to the piezoelectric axis.
Del Mar Photonics reply:
Request a quote for crystal quartz lens!
