Trestles LH Ti:Sapphire
laser
Trestles LH is a new series of high quality
femtosecond Ti:Sapphire lasers for applications in scientific research,
biological imaging, life sciences and precision material processing. Trestles LH
includes integrated sealed, turn-key, cost-effective,
diode-pumped solid-state (DPSS). Trestles LH lasers offer the most
attractive pricing on the market combined with excellent performance and
reliability. DPSS LH is a state-of-the-art laser designed for today’s
applications. It combines superb performance and tremendous value for today’s
market and has
numerous advantages over all other DPSS lasers suitable for Ti:Sapphire pumping.
Trestles LH can be customized to fit customer requirements and budget.
The specifications shown below have beed improved. We offer now 700 - 1000 nm
tuning range with 10W pump.
>1.4 W @ 800 nm
>500 mW@ 700 nm
>100 mW@ 1000 nm
Trestles 100M
Ti:Sapphire femtosecond oscillator without pump laser
Tuning range (@5W pump): 730-950* or 730-870
* - with two sets of optics
Output power (@5W pump, 800 nm): >600 mW
Repetition rate: 80 MHz
Pulse duration:
<100
fs
Spatial mode: TEMoo
Polarization: linear horizontal
Pump polarization required: linear horizontal
Also included:
Electronic starter with TTL output for pulse train observation and
synchronization of external devices
USB-controlled tuning slit for wavelength tuning in fs mode with software
Pump polarization
rotator for the Trestles For vertically polarized
pump lasers
1
330.-
4
Trestles LH5
Ti:Sapphire femtosecond oscillator with a 5 W built-in
DPSS pump laser LH5
Tuning range (@5W pump): 730-950* or 730-870 nm
* - with two sets of optics
Output power (@5W pump, 800 nm): >600 mW
Repetition rate: 80 MHz
Pulse duration:
<100
fs
Spatial mode: TEMoo
Polarization: linear horizontal
Pump laser: 532 nm
low-noise 5 W DPSS laser LH5
Also included:
Thermostabilized breadboard
Electronic starter with TTL output for pulse train observation and
synchronization of external devices
USB-controlled tuning slit for wavelength tuning in fs mode with software
Closed-loop chiller unit is included in DPSS DMPLH power supply unit.
Additional chiller for cooling Ti:Sapphire crystal is not required.
Trestles LH10
Ti:Sapphire femtosecond oscillator with a 10 W built-in
DPSS pump laser LH10
Tuning range (@10W pump): 710-980* or 730-870 nm
Output power (@10W pump, 800 nm): >1300 mW
Repetition rate: 80 MHz
Pulse duration:
<100
fs
Spatial mode: TEMoo
Polarization: linear horizontal
Pump laser: 532 nm low-noise
10 W DPSS laser LH10
Also included:
Thermostabilized breadboard
Electronic starter with TTL output for pulse train observation and
synchronization of external devices
USB-controlled tuning slit for wavelength tuning in fs mode with software
Closed-loop chiller unit is included in DPSS DMPLH power supply unit.
Additional chiller for cooling Ti:Sapphire crystal is not required.
Tunable aux CW arm
modification for the Trestles CW cavity
arm is equipped with a BRF filter for tunable CW output (fs and CW modes are
switchable)
Tuning range (@10W pump): same as in fs mode
Output power (@800 nm):
>1800 mW@10 W pump
>700 mW @5 W pump
Linewidth: <45 GHz
USB-controlled birefringent filter with software included
This
modification should be ordered at the same time with the Trestles LH
femtosecond laser
USB-controlled etalon for further narrowing the linewidth
of the auxiliary CW arm to <2 GHz Note: Operates only in
combination with the BRF filter and the thin etalon.
Del Mar Photonics offers new Trestles
LH fs/CW laser system which can be easily
switched from femtosecond mode to CW and back. Having both modes of operation in one system dramatically increase a number of
applications that the laser can be used for, and makes it an ideal tool for
scientific lab involved in multiple research projects.
Trestles LH10 fs/CW laser system at UC Santa Cruz Center of
Nanoscale Optofluidics
Typical specifications are:
Trestles LH10 fs/CW laser system
Request a quote (includes 5, 7, 8, 9, 10 items in the item list
above)
Ti:Sapphire femtosecond oscillator with CW operation option Spatial mode: TEMoo
Polarization: linear horizontal
fs mode:
Tuning range (@10W pump): 750-850 nm
Output power (@10W pump, 800 nm): >1500 mW
Repetition rate: 80 MHz
Pulse duration: <100 fs
CW mode:
Tuning range (@10W pump): 750-850 nm
Output power (@10W pump, 800 nm): >2000 mW in CW
Linewidth (with two etalons): <2 GHz
Also included:
Thermostabilized breadboard;
Electronic starter with TTL output for mode-locked mode observation;
USB-controlled tuning slit for wavelength tuning in fs mode;
3-plate USB-controlled birefringent Lyot filter;
Two motorized USB-controlled etalons for linewidth control
DPSS LH10 (10 Watt Diode Pump Solid State Laser) -
DPSS DMPLH lasers Average Output Power > 10 W
Wavelength 532 nm
Spectral Purity > 99.9 %
Spatial Mode TEM00
Beam Quality (M2) 1.0 - 1.1
Beam Ellipcicity < 1.0 : 1.1
Beam Diameter 2.3 mm ± 10%
Beam Divergence < 0.5 mrad
Pointing Stability < 2 μrad/°C
Power Stability < ± 0.25 % rms
Noise Standard version: < 0.2 % rms
Low noise (NET) version: < 0.03 % rms
Polarization > 100:1 vertical
Power Requirements
Operating Voltage 100-240 VAC, 50 Hz / 60 Hz
Power Consumption 500 W max, 300 W typical
Cooling Requirements
Laser Head Closed-loop chiller in Power Supply - Cooler
Power Supply (in Power Supply - Cooler) Air-cooled
Environmental Specifications
Operating Temperature 64-90°F (18-32°C)
Relative Humidity 8-85%, non-condensing
Laser Head - Physical Dimensions (Height x Width x Length)
2.7 x 5.3 x 10.1 inches
(69 x 135 x 256 mm)
Weight 7.0 lbs (3.2 kg) approx.
Cable Length 10 " (3 m)
Power Supply-Cooler - Physical Dimensions (Height x Width x Depth)
13.0 x 12.7 x 18.2 inches
(330 x 323 x 463 mm)
Weight 55 lbs (25 kg) approx.

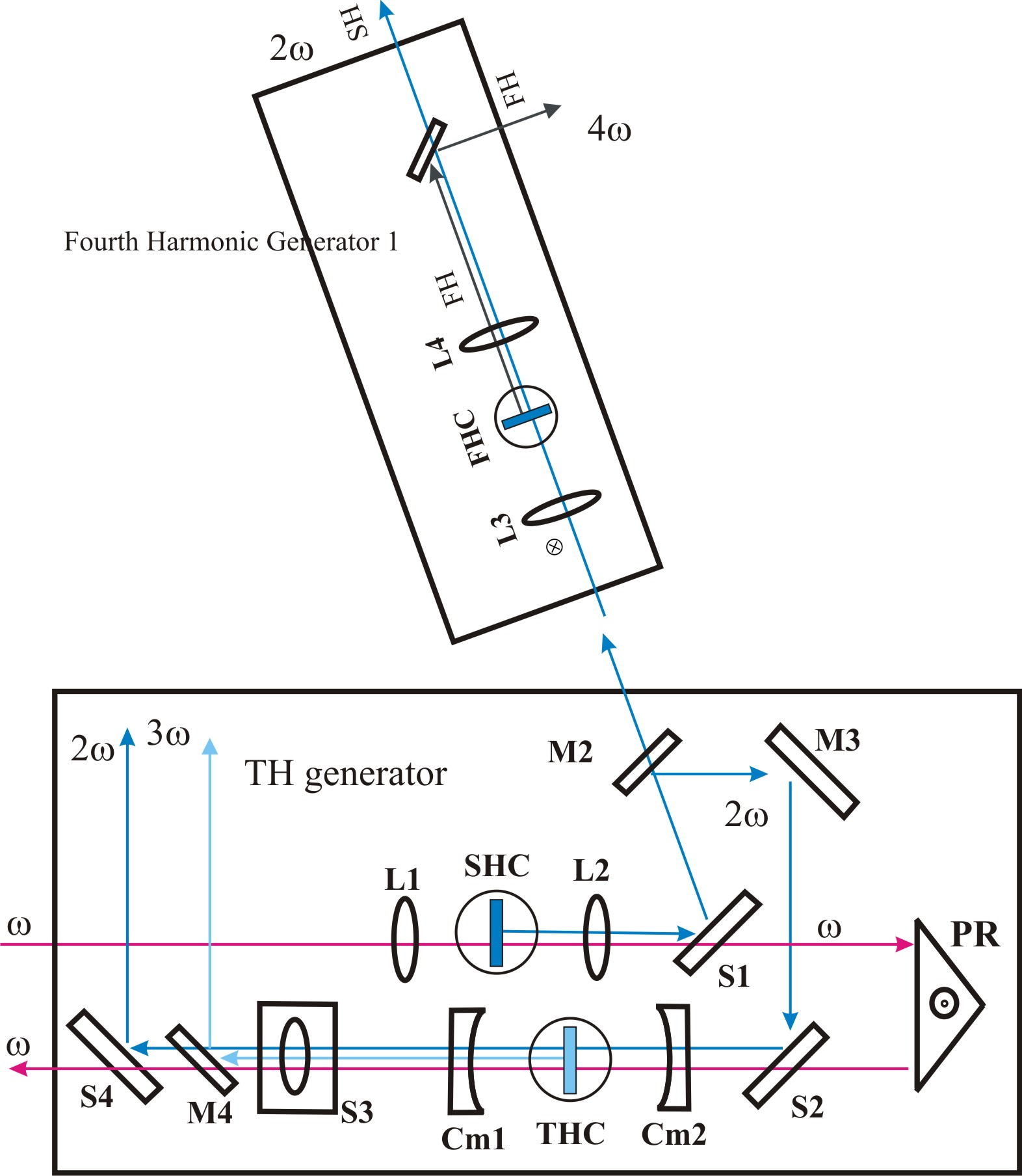

Schematic setup of Trestles LH10-fs/CW laser system with
built-in pump laser
Del Mar Photonics supply Trestles lasers as stand alone system, or as a
one-box system with built-in DPSS pump laser.
The price of the system with DPSS pump depends on required output power.
The standard tuning elements indicated below are used in CW Ti:Sapphire
lasers such as
Trestles CW or Trestles fs/CW.
Those elements are also sold separately as standrad items or as a custom made
components.
1) Thick etalon -
request a quote
Thickness - 3 mm, diameter - 20 mm. Surface quality: Ð=1-2, N<1, ΔN<0.1,
λ/10, plane parallelism better than 10''. Thickness accuracy 5 um.
2) Thin etalon -
request a quote
Thickness - 200 um, diameter - 15 mm. Surface quality: Ð=1-2, N<1, ΔN<0.1,
λ/10, plane parallelism better than 10''. Thickness accuracy 5 um.

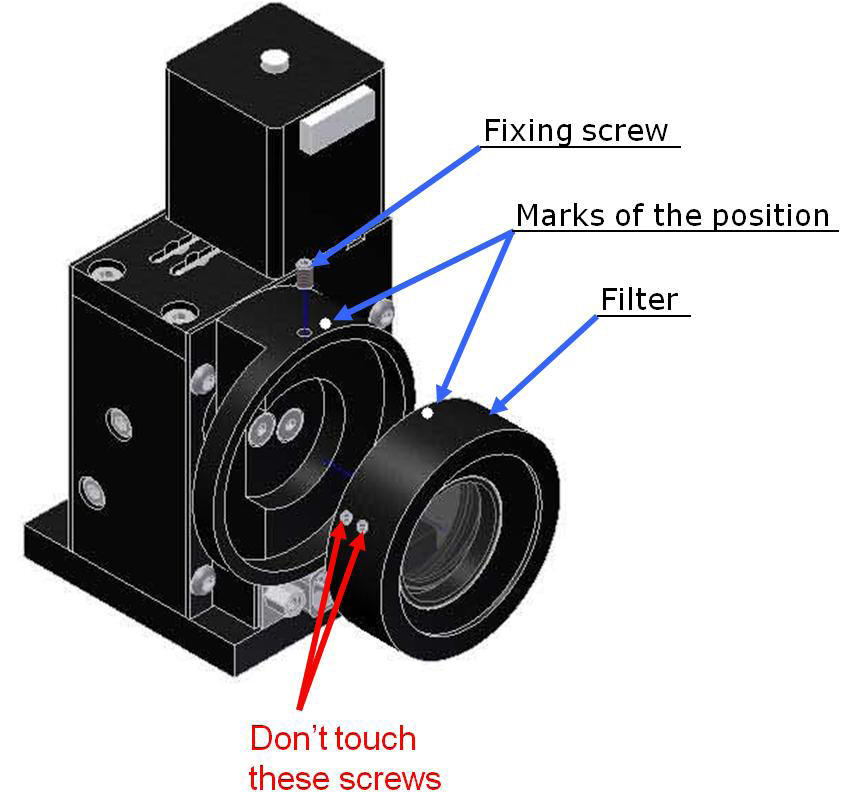

We use a 3-plate assembled BRF (Lyot filter) with adjustable motorized mount
(see attached drawing).
Total losses introduced into the cavity by the filter are 5% of the laser’s
output power. The FSR is defined by the thinnest plate and equals to around -
1.3*1014 Hz, while the maximum width is controlled by the thickest
plate and equals to approx. 3.1*1012 Hz.
Dimensions of plate assembly ('filter' in the picture): dia 44.5 mm, t=13.5 mm.
It should be properly aligned (Brewster to the beam) and rotated by some
rotating mount around its axis to provide wavelength tuning.
Third and Forth Harmonic Generator for Ti:Sapphire lasers:
Three Case studies
Customer inquiry:
We have about 1 W across the range 780nm to 920 nm. We are interested mostly
in tunability in the range 240-300nm. Pulse width is not very > important. If a
(third + fourth) HG exists in one model, that would be great. Also it would be
good for us to have several wavelength available at the same time, i.e.
fundamental and harmonics.
I want to use this system for a photoemission microscope, and my first interest
is in the tuning capability. The second interest is in building up a
pump-and-probe system using the fundamental or 2nd harmonic as a pump beam and
the third harmonic as probe. Do you have suggestions for the delay-line?
Answer:
We can offer our multiharmonic (SH, TH) generator unit. The simultaneous output
will have around 10% (100 mW) of your input power in fundamental and each of
harmonics (10% fundamental, 10% second and 10% third). Each harmonic has its own
output (see attachment). The tuning range will be 260-300 nm for TH with your
input tuning range.
The FH system will produce 205-230 nm radiation out of your laser (780-920)
Customer inquiry:
I'm interested in the 3^rd harmonic generator for an amplified Ti:sapphire laser.
What is the maximum pulse energy? The system is a Coherent regenerative
amplifier (RegA 9000) that produces 750 mW at a repetition rate of 100 kHz,
which is a pulse energy of 7.5 microjoules in 50 femtoseconds. The beam diameter
is 2.7 mm.
We have tried to use a Coherent 9300 harmonic system, but it is designed for
oscillator energies of nanojoules, so it is too tightly focused on the crystal
and generates white light.
Answer:

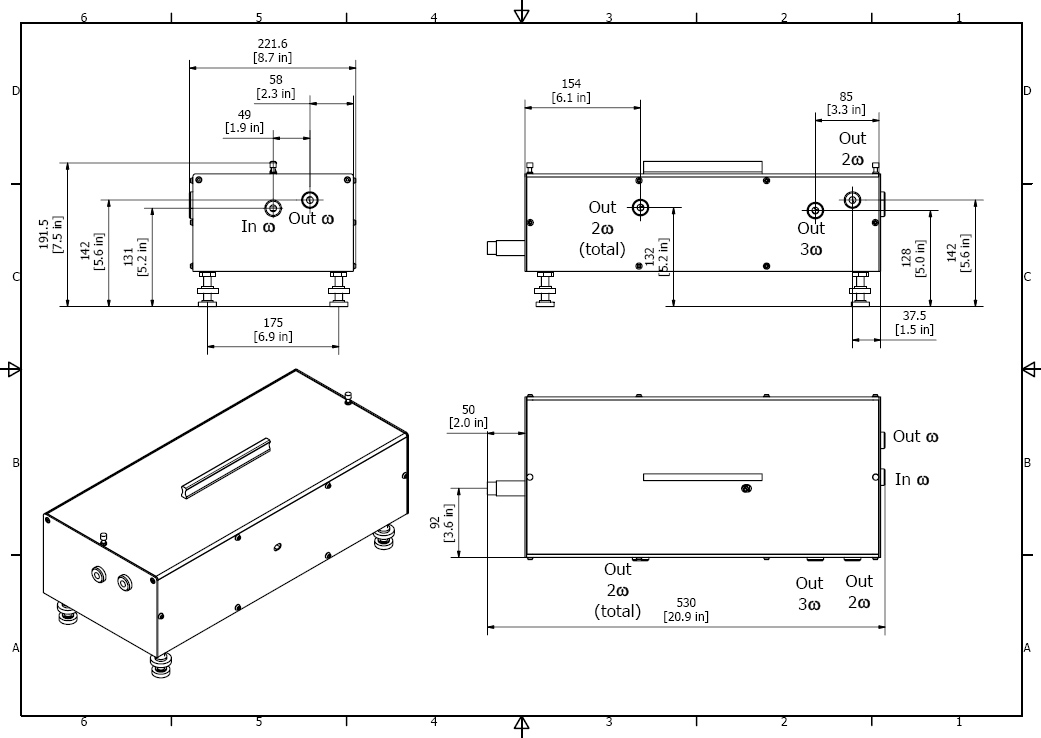

Please find enclosed the quotation for the TH generator along with
the drawing. Please note that since the unit is non-standard the dimensions
may be extended by +100 mm in length and +50 mm in width.
ATsG800 Third Harmonic Generator
Second and third harmonic outputs
Input wavelength for TH – 750-900 nm
Input wavelength for SH – 710-960 nm
Input pulse width - >20 fs
Conversion efficiency for TH – 7-8% (depends on input
parameters)
Conversion efficiency for SH – >30% (depends on input
parameters)
Pulse broadening - <150 fs Input pulse energy – 8 μJ
I’m interested in the 3rd harmonic generator for an amplified Ti:sapphire laser.
What is the maximum pulse energy? The system is a regenerative amplifier that
produces 750 mW at a repetition rate of 100 kHz, which is a pulse energy of 7.5
microjoules in 50 femtoseconds. The beam diameter is 2.7 mm. We have tried to
use a Coherent 9300 harmonic system, but it is designed for oscillator energies
of nanojoules, so it is too tightly focused on the crystal and generates white
light.
Del Mar Photonics:
We can offer about 7-8% efficiency, the version for 8 uJ will be non-standard.
Please find enclosed
the quotation for the TH generator along with
the drawing. Please note that since the unit is non-standard the dimensions may
be extended by +100 mm in length and +50 mm in width.

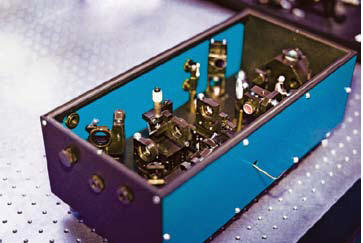

Third harmonic generator (THG) is developed for frequency doubling and
tripling of Ti-Sa amplifier radiation (λ=780-820 nm). Device is based on second
harmonic generation (SHG) and sum-frequency generation (SFG) techniques and
provides stable radiation in fs scale. TH generator is developed for high
conversion efficiency.
Product news and updates - Training Workshops
- Featured Customer - Other News
Trestles LH Ti:Sapphire
laser
Trestles LH is a new series of high quality femtosecond Ti:Sapphire
lasers for applications in scientific research, biological imaging, life
sciences and precision material processing. Trestles LH includes integrated
sealed, turn-key, cost-effective, diode-pumped
solid-state (DPSS). Trestles LH lasers offer the most attractive pricing
on the market combined with excellent performance and reliability. DPSS LH
is a state-of-the-art laser designed for today’s applications. It combines
superb performance and tremendous value for today’s market and has
numerous advantages over all other DPSS lasers suitable for Ti:Sapphire
pumping. Trestles LH can be customized to fit customer requirements and
budget.
DPSS DMPLH lasers
DPSS DMP LH series lasers will pump your Ti:Sapphire laser.
There are LH series lasers installed all over the world pumping all makes & models
of oscillator. Anywhere from CEP-stabilized femtosecond Ti:Sapphire oscillators
to ultra-narrow-linewidth CW Ti:Sapphire oscillators. With up to 10 Watts CW
average power at 532nm in a TEMoo spatial mode, LH series
lasers has quickly proven itself
as the perfect DPSS pump laser for all types of Ti:Sapphire or dye laser.
Ideal for pumping of: Trestles LH
Ti:Sapphire laser T&D-scan laser
spectrometer based on narrow line CW Ti:Sapphire laser
New laser spectrometer
T&D-scan for research that
demands high resolution and high spectral
density in UV-VIS-NIR spectral domains - now available with
new pump option! The T&D-scanincludes
a CW ultra-wide-tunable narrow-line laser, high-precision wavelength meter,
an electronic control unit driven through USB interface as well as a
software package. Novel advanced design of the fundamental laser component
implements efficient intra-cavity frequency doubling as well as provides a
state-of-the-art combined ultra-wide-tunable Ti:Sapphire & Dye laser
capable of covering together a
super-broad spectral range between 275 and 1100 nm. Wavelength
selection components as well as the position of the non-linear crystal are
precisely tuned by a closed-loop control
system, which incorporates highly accurate wavelength meter.
AOTF Infrared Spectrometer
Del Mar Photonics offer a handheld
infrared spectrometer based on the
acousto-optic tunable filter (AOTF). This instrument is about the size and
weight of a video camera, and can be battery operated. This unique, patented
device is all solid-state with no moving parts. It has been sold for a wide
variety of applications such as liquid fuel analysis, pharmaceutical analysis,
gas monitoring and
plastic analysis.
Miniature AOTF infrared spectrometer uses
a crystal of tellurium dioxide to scan the wavelength. Light from a light source enters
the crystal, and is diffracted into specific wavelengths. These wavelengths are
determined by the frequency of the electrical input to the crystal. Since there
are no moving parts, the wavelength scanning can be extremely fast. In addition,
specific wavelengths can be chosen by software according to the required algorithm, and therefore can be modified without changing the
hardware. After the infrared radiation reflects off of the sample, it is
converted into an electrical signal by the detector and analyzed by the
computer. Del Mar Photonics is looking for international distributors for
RAVEN - AOTF IR spectrometer for plastic identification and for variety of
scientific and industrial collaborations to explore futher commercial potential
of AOTF technology.
Open Microchannel Plate Detector
MCP-MA25/2 -
now in stock!
Microchannel Plate Detectors MCP-MA series are an open MCP detectors
with one or more microchannel plates and a single metal anode. They are intended
for time-resolved detection and make use of high-speed response properties of
the MCPs. MCP-MA detectors are designed for photons and particles detection in
vacuum chambers or in the space.
MCP-MA detectors are used in a variety of applications including UV, VUV and EUV
spectroscopy, atomic and molecular physics, TOF mass–spectrometry of clusters
and biomolecules, surface studies and space research.
MCP-MA detectors supplied as a totally assembled unit that can be easily mounted
on any support substrate or directly on a vacuum flange. They also can be
supplied premounted on a standard ConFlat flanges.
buy online -
ask for research discount!
Hummingbird EMCCD camera
The digital Hummingbird
EMCCD camera combines high sensitivity, speed and high resolution.
It uses Texas Instruments' 1MegaPixel Frame Transfer Impactron device which
provides QE up to 65%.
Hummingbird comes with a standard CameraLink output.
It is the smallest and most rugged 1MP EMCCD camera in the world.
It is ideally suited for any low imaging application such as hyperspectral
imaging, X-ray imaging, Astronomy and low light surveillance.
It is small, lightweight, low power and is therefore the ideal camera for
OEM and integrators.
buy online
Hatteras-D
femtosecond transient absorption data acquisition system
Future nanostructures and biological nanosystems will take
advantage not only of the small dimensions of the objects but of the
specific way of interaction between nano-objects. The interactions
of building blocks within these nanosystems will be studied and optimized on
the
femtosecond time scale - says Sergey Egorov, President and CEO of Del Mar
Photonics, Inc. Thus we put a lot of our efforts and resources into the
development of new Ultrafast
Dynamics Tools such as our Femtosecond Transient Absorption Measurements
system Hatteras. Whether you want to
create a new photovoltaic system that will efficiently convert photon energy
in charge separation, or build a molecular complex that will dump photon energy
into local heat to kill cancer cells, or create a new fluorescent probe for
FRET microscopy, understanding of internal dynamics on femtosecond time scale
is utterly important and requires advanced measurement techniques.
Beacon Femtosecond Optically Gated Fluorescence Kinetic Measurement System
-
request a quote -
pdf
Beacon together with Trestles Ti:sapphire oscillator, second and third harmonic
generators. Femtosecond optical gating (FOG) method gives best temporal
resolution in light-induced fluorescence lifetime measurements. The resolution
is determined by a temporal width of femtosecond optical gate pulse and doesn't
depend on the detector response function. Sum frequency generation (also called
upconversion) in nonlinear optical crystal is used as a gating method in the
Beacon femtosecond fluorescence kinetic measurement system. We offer
Beacon-DX for operation together with Ti: sapphire femtosecond oscillators
and Beacon-DA for operation together with femtosecond amplified pulses.
IntraStage lowers the cost
of test data management!
Struggling with gigabytes or terabytes of test data? IntraStage easily transforms test
data from disparate sources into web-based quality metrics and engineering
intelligence you can use.
Contact
us today to discuss your test management requirements and specifications of your
application.
Training Workshops
Come to San Diego next summer! Attend one of our training workshops in San Diego, California
during summer 2011
Del Mar Photonics has presented training workshops for
customers and potential customers in the past 3 years.
Our workshops cover scientific basics, technical details and provide
generous time for hands-on training.
Each workshop is a three-day seminar conducted by professional lecturer from 10am to 4pm. It includes lunch, as
well as a training materials. We have also reserved two days for Q&A sessions,
one-on-one system integration discussions, social networking, and San Diego sightseeing.
Del
Mar Photonics offers new
Trestles fs/CW laser system which can be easily
switched from femtosecond mode to CW and back. Having both modes of operation in one system dramatically increase a
number of applications that the laser can be used for, and makes it an ideal
tool for scientific lab involved in multiple research projects.
Kaelyn Leake is a PhD student in Electrical Engineering. She graduated from
Sweet Briar College with a B.S. in Engineering Sciences and Physics. Her
research interests include development of nanoscale optofluidic devices and
their applications. Kaelyn is the recipient of a first-year QB3 Fellowship.
In this video Kaelyn talks about her experimental research in nanoscale
optofluidics to be done with Trestles LH laser.
Frequency-stabilized CW
single-frequency ring Dye laser DYE-SF-007 pumped by DPSS DMPLH laser installed
in the brand new group of Dr. Dajun Wang at the The Chinese University of Hong
Kong.
DYE-SF-077 features exceptionally narrow generation line width, which
amounts to less than 100 kHz. DYE-SF-077 sets new standard for generation
line width of commercial lasers. Prior to this model, the narrowest line-width
of commercial dye lasers was as broad as 500 kHz - 1 MHz. It is necessary to
note that the 100-kHz line-width is achieved in DYE-SF-077 without the use of an
acousto-optical modulator, which, as a rule, complicates the design and
introduces additional losses. A specially designed ultra-fast PZT is used for
efficient suppression of radiation frequency fluctuations in a broad frequency
range. DYE-SF-077 will be used in resaerch of Ultracold polar molecules,
Bose-Einstein condensate and quantum degenerate Fermi gas and High resolution
spectroscopy
Del Mar Photonics continuously expands its components
portfolio.
Solar
Prisms for Concentrating Photovoltaic Systems (CPV) Solar cells made of compound semiconductors such
as gallium arsenide are very expensive. Usually very small cells are
installed and various means such as mirrors, lenses, prisms, etc..are used
to concentrate sunlight on the cells. Concentration photovoltaic technology
(CPV) uses the solar radiation with an efficiency of 40%, double that of
conventional solar cells
Del Mar Photonics design custom Concentrating Photovoltaic Systems (CPV) and
supply variety of the optical components for CPV such as
solar prisms shown in the picture.
Axicon Lens
Axicon lens also known as conical lens or rotationally symmetric prism is
widely used in different scientific research and application. Axicon can be
used to convert a parallel laser beam into a ring, to create a non
diffractive Bessel beam or to focus a parallel beam into long focus depth.
Del Mar Photonics supplies axicons with cone angles range from 130° to
179.5° for use with virtually any laser radiation. We manufacture and supply
axicons made from BK7 glass, fused silica and other materials.
Rutile (TiO2) coupling
prisms
Del Mar Photonics offers optical elements made of high quality synthetically
grown Rutile Titanium Dioxide crystals. Rutile’s strong birefringency, wide
transmission range and good mechanical properties make it suitable for
fabrication of polarizing cubes, prisms and optical isolators. Boules having
high optical transmission and homogeneity are grown by proprietary method.
Typical boules have 10 - 15 mm in dia. and up to 25 mm length. Optical
elements sizes - from 2 x 2 x 1 mm to 12.7 x 12.7 x 12.7 mm. Laser grade
polish quality is available for finished elements. So far we the largest
elements that we manufactured are 12 x15 x 5 mm, in which optical axis is
parallel to 15 mm edge, 5 mm is along beam path, 12 x 15 mm faces polished
20/10 S/D, one wave flatness, parallelism < 3 arc.min. (better specs.
available on request).
Vacuum viewport
Del Mar Photonics offer a range of competitively priced UHV viewports ,
Conflat, ISO or KF including a variety of coatings to enhance performance.
Del Mar Photonics viewports are manufactured using advanced techniques for
control of special and critical processes, including 100 percent helium leak
testing and x-ray measurements for metallization control. Windows Materials
include: Fused silica, Quartz , Sapphire , MgF2, BaF2, CaF2, ZnSe, ZnS, Ge,
Si, Pyrex. Standard Viewing diameters from .55" to 1.94 ".
Coating - a range of custom coatings can applied - which include
- Single QWOT
- Broad Band AR
- V coatings
- ITO
- DLC (Diamond like coating)
Hydrogen
Thyratrons are used in
such devices as radars with different power levels, high-power pulsed
technical, electrophysical, medical devices and lasers. Sophisticated
design and high quality ceramic-metal envelope determines long lifetime
and very accurate and reliable operation of hydrogen thyratrons under wide range of environmental
conditions. Applications:
- radars
- pulsed lasers power supplies
- medical apparatus
- electrophysical instrumentation
Triggered Three-Electrode Spark Gap Switches are ceramic-metal sealed off gas
discharge trigatron-type devices with a co-axial trigger electrode. These Gas
Discharge Tubes contain no mercury and, due to an advanced design, feature high
reliability and a long lifetime being operating under wide range of
environmental conditions.
Applications:
- pulsed installation for processing materials
- installations with plasma focus
- pulse power supplies for lasers and other pulse equipment
- medical apparatus such as lithotriptors and defibrillators
- processing systems for petroleum wells
We are looking forward to hear from you and help you with
your optical and crystal components requirements. Need time to think about
it?
Drop us a line and we'll send you beautiful Del Mar Photonics mug (or
two) so you can have a tea party with your colleagues and discuss your
potential needs.
Del Mar Photonics, Inc. 4119 Twilight Ridge
San Diego, CA 92130
tel: (858) 876-3133
fax: (858) 630-2376
Skype: delmarphotonics sales@dmphotonics.com
