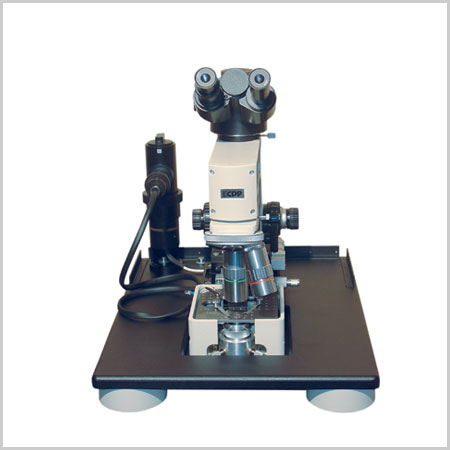

Near Field Scanning Optical Microscope NSOM Godwit - best spatial optical resolution using the near field scanning optical microscope (NSOM) principle
Near field scanning optical microscope (NSOM) and atomic force microscope (AFM) modes of operation
NSOM images with laser and lamp illumination
Commerciaand custom NSOM probes
Near field optica and luminescence images in photon counting mode
NSOM images in collection and illumination modes
Transmission and reflection NSOM configurations
20 nm optical resolution (Raleigh criteria for spatial resolution)
State-of-the-art optical microscope console: simultaneous sample and tip observation with long working distance objectives
Femtosecond and UV excitation
True single molecule detection
High-resolution AFM imaging of DNA
Godwit-uScope data acquisition and Godwit-FemtoScan image processing software
Ambient light protection with light-tight box


Del Mar Photonics is your one stop source for ultrafast (femtosecond) as well as continuum wave (CW) narrow linewidth Ti:Sapphire lasers Trestles LH Ti:Sapphire laser
Trestles LH is a new series of high quality femtosecond Ti:Sapphire lasers for applications in scientific research, biological imaging, life sciences and precision material processing. Trestles LH includes integrated sealed, turn-key, cost-effective, diode-pumped solid-state (DPSS). Trestles LH lasers offer the most attractive pricing on the market combined with excellent performance and reliability. DPSS LH is a state-of-the-art laser designed for today’s applications. It combines superb performance and tremendous value for today’s market and has numerous advantages over all other DPSS lasers suitable for Ti:Sapphire pumping. Trestles LH can be customized to fit customer requirements and budget.
Trestles LH plus OPO (Optical Parametric Oscillator)

Reserve a spot in our Femtosecond lasers training workshop in San Diego, California. Come to learn how to build a femtosecond laser from a kit


DPSS DMPLH lasers
DPSS DMP LH series lasers will pump your Ti:Sapphire laser. There are LH series lasers installed all over the world pumping all makes & models of oscillator. Anywhere from CEP-stabilized femtosecond Ti:Sapphire oscillators to ultra-narrow-linewidth CW Ti:Sapphire oscillators. With up to 10 Watts CW average power at 532nm in a TEMoo spatial mode, LH series lasers has quickly proven itself as the perfect DPSS pump laser for all types of Ti:Sapphire or dye laser.
Ideal for pumping of:

Trestles LH Ti:Sapphire laser - ULN ultra low-noise option
T&D-scan laser spectrometer based on narrow line CW Ti:Sapphire laser

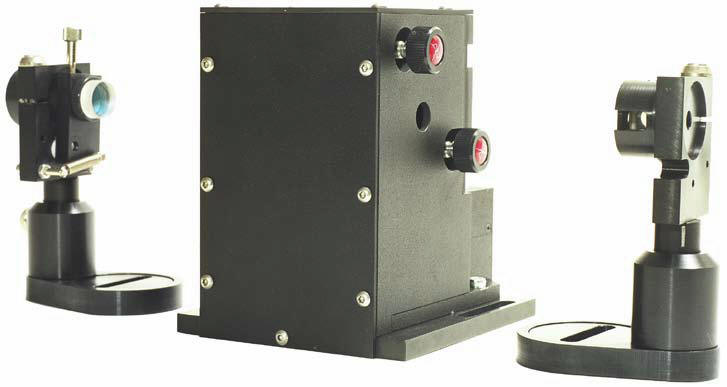

Pismo pulse picker
The Pismo pulse picker systems is as a pulse gating system that lets single pulses or group of subsequent pulses from a femtosecond or picosecond pulse train pass through the system, and stops other radiation. The system is perfectly suitable for most commercial femtosecond oscillators and amplifiers. The system can pick either single pulses, shoot bursts (patterns of single pulses) or pick group of subsequent pulses (wider square-shaped HV pulse modification). HV pulse duration (i.e. gate open time) is 10 ns in the default Pismo 8/1 model, but can be customized from 3 to 1250 ns upon request or made variable. The frequency of the picked pulses starts with single shot to 1 kHz for the basic model, and goes up to 100 kHz for the most advanced one.
The Pockels cell is supplied with a control unit that is capable of synching to the optical pulse train via a built-in photodetector unit, while electric trigger signal is also accepted. Two additional delay channels are available for synching of other equipment to the pulse picker operation. Moreover, USB connectivity and LabView-compatible drivers save a great deal of your time on storing and recalling presets, and setting up some automated experimental setups. One control unit is capable of driving of up to 3 Pockels cells, and this comes handy in complex setups or contrast-improving schemes. The system can also be modified to supply two HV pulses to one Pockels cell unit, making it a 2-channel pulse picker system. This may be essential for injection/ejection purposes when building a regenerative or multipass amplifier system.

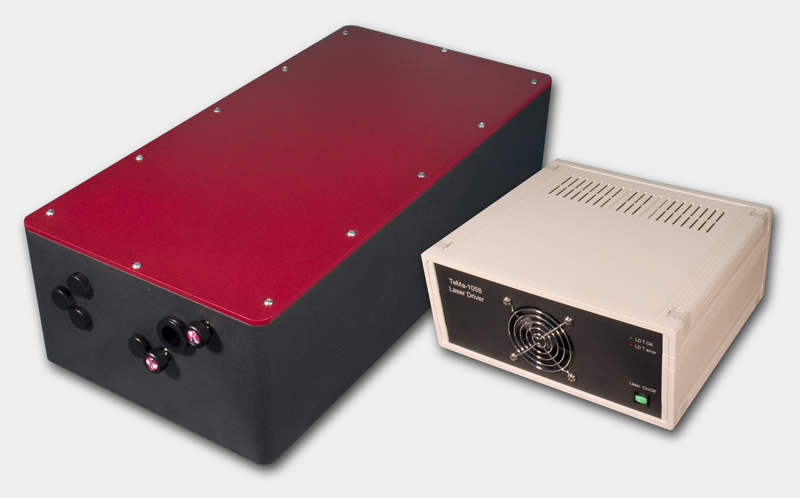

Tourmaline Yb-SS-1058/100 Femtosecond solid state laser system
The Yb-doped Tourmaline Yb-SS laser radiates at 1058±2 nm with more than 1 W of average power, and enables the user to enjoy Ti:Sapphire level power at over-micron wavelengths. This new design from Del Mar's engineers features an integrated pump diode module for greater system stability and turn-key operation. The solid bulk body of the laser ensures maximum rigidity, while self-starting design provides for easy "plug-and-play" operation. Laser for second harmonic imaging in the retina with the voltage sensitive dye FM4-64


New fiber optics and fiber laser products
Laser Source for Photodynamic Therapy -  request additional information and quote
AOM OEM Acousto-Optic Modulators for DPSS lasers, 1060 – 2100 nm -  request additional information and quote
AOM – pigtailed for pulsed fiber lasers, 1060-2100 nm -  request additional information and quote
Quasi-CW Yb fiber laser, 36 W in CW, 17 W pulsed -  request additional information and quote
Pulsed (AOM) fiber laser, 20 W, 1060 – 2100 nm -  request additional information and quote
Pulsed (pulse width/repetition rate – tunable) MOFA-type laser 10-W, 1060 nm  -  request additional information and quote
Eye-safe CW fiber laser, 25 W -  request additional information and quote
Yellow fiber Laser, 15 W -  request additional information and quote
10-GHz photonic link -
request additional information and quote

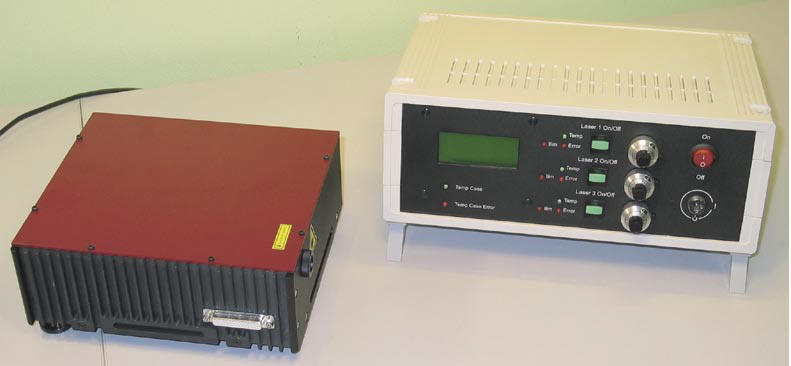

780 nm and 1560 nm Femtosecond Fiber Laser Buccaneer SHG 160/80 - Buccaneer SHG 300/120
Femtosecond Fiber Laser with SH Generation
Wavelength (switchable): 780±5 nm (fixed) or 1560±10 nm (fixed)
Pulse Width (FWHM): <120 fs
Power output (switchable apertures):
>80 mW, 780 nm, TEM00, linearly polarized or
>160 mW, 1560 nm, TEM00, linearly polarized
Repetition rate: 70 MHz
Spatial mode: TEMoo
RF SYNC out: SMA connector (200-300 mV@50 ohm load)
Mode lock status: SMA connector (3.5/0 V) and LED
For applications in Amplifier systems seeding, Terahertz generation and detection, Multi-photon microscopy, Ultrafast spectroscopy, Semiconductor device characterization, Supercontinuum generation, Optical coherence tomography, Telecommunications , Micromachining, Nonlinear Bioimaging (SHG imaging), THz spectroscopy, Education - Looking deep within the body without making an incision


New laser spectrometer OB' for research studies demanding fine resolution and high spectral density of radiation within UV-VIS-NIR spectral domains New laser spectrometer T&D-scan for research  that demands high resolution and high spectral density in UV-VIS-NIR spectral domains - now available with new pump option!
The T&D-scan includes a CW ultra-wide-tunable narrow-line laser, high-precision wavelength meter, an electronic control unit driven through USB interface as well as a software package. Novel advanced design of the fundamental laser component implements efficient intra-cavity frequency doubling as well as provides a state-of-the-art combined ultra-wide-tunable Ti:Sapphire & Dye laser capable of covering together a super-broad spectral range between 275 and 1100 nm. Wavelength selection components as well as the position of the non-linear crystal are precisely tuned by a closed-loop control system, which incorporates highly accurate wavelength meter.

Reserve a spot in our CW lasers training workshop in San Diego, California. Come to learn how to build a CW Ti:Sapphire laser from a kit

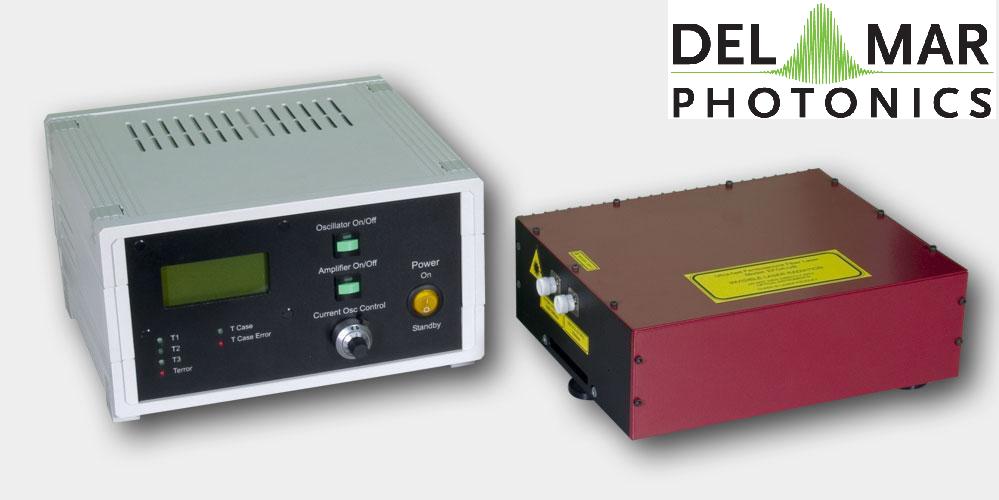

Femtosecond fiber laser Model Pearl-70P300 - request a quote
Femtosecond pulsed lasers are used in many fields of physics, biology, medicine and many other natural sciences and applications: material processing, multiphoton microscopy, «pump-probe» spectroscopy, parametric generation and optical frequency metrology. Femtosecond fiber lasers offer stable and steady operation without constant realignment.
The Pearl-70P300 laser comprises: a passively mode-locked fiber laser, providing pulses with repetition rate 60 MHz and having duration of 250-5000 fs, an amplifier based on Er3+ doped fiber waveguide with pumping by two laser diodes, a prism compressor for amplified pulse compression.
Pearl Ultra-Compact Ultrafast Picosecond Fiber Oscillator

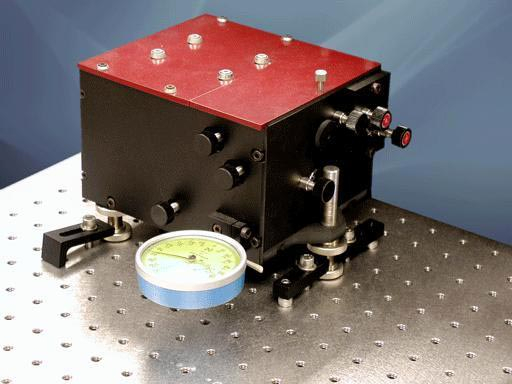

Autocorrelator Reef RT, Del Mar Photonics, San Diego, CA

Reef femtosecond autocorrelators
The autocorrelation technique is the most common method used to determine laser pulse width characteristics on a femtosecond time scale.
The basic optical configuration of the autocorrelator is similar to that of an interferometer (Figure.1). An incoming pulse train is split into two beams of equal intensity. An adjustable optical delay is inserted into one of the arms. The two beams are then recombined within a nonlinear material (semiconductor) for two photon absorption (TPA). The incident pulses directly generate a nonlinear TPA photocurrent in the semiconductor, and the detection of this photocurrent as a function of interferometer optical delay between the interacting pulses yields the pulse autocorrelation function. The TPA process is polarization-independent and non-phasematched, simplifying alignment.

Reef-RT autocorrelator measures laser pulse durations ranging from 20 femtoseconds to picosecond regime. It measures pulse widths from both low energy, high repetition rate oscillators and high energy, low repetition rate amplifiers. Compact control unit operates autocorrelator head and optional spectrometer through on-screen menus. Autocorrelation trace and spectrum can be displayed and analyzed on screen or downloaded to remote computer.

New: Reef-20DDR autocorrelator - Multishot-FROG for femtosecond fiber laser oscillator and amplifier
Collinear (interferometric) autocorrelation for 1300-2000 nm wavelength range

Trestles Fourth Harmonic Generator - request a quote

Trestles FHG is designed to work with Ti:sapphire lasers, such as the Trestles Ti:sapphire laser to provide fourth harmonic generation. Trestles FHG is an affordable and easy solution to generating pulses around 200 nm.
Trestles FHG is available in two versions. The first version uses the third harmonic mixed with the fundamental wavelength to produce fourth harmonic generation. This option provides the fundamental, as well as the second, third and fourth harmonics. For input of 810 nm, 1 W, 82MHz and 50 fs, output of the fourth harmonic is at 203 nm, 300-400 fs and power is 3 mW. The second option uses two separate second harmonic generation stages to produce fourth harmonic generation. With input of 810 nm, 1 W, 82 MHz and 50 fs, output of the fourth harmonic is at 210 nm, pulse width of 500 fs and power of 10 mW.
The Trestles FHG from Del Mar Photonics is an easily installed solution for adding functionality to any femtosecond laser system. Extended ranges will increase capabilities for research, and specific applications such as microscopy and spectroscopy.


Near IR viewers
High performance infrared monocular viewers are designed to observe radiation emitted by infrared sources. They can be used to observe indirect radiation of IR LED's and diode lasers, Nd:YAG, Ti:Sapphire, Cr:Forsterite, dye lasers and other laser sources. IR viewers are ideal for applications involving the alignment of infrared laser beams and of optical components in near-infrared systems. Near IR viewers sensitive to laser radiation up to 2000 nm.
The light weight, compact monocular may be used as a hand-held or facemask mounted for hands free operation.

Ultraviolet viewers are designed to observe radiation emitted by UV sources.

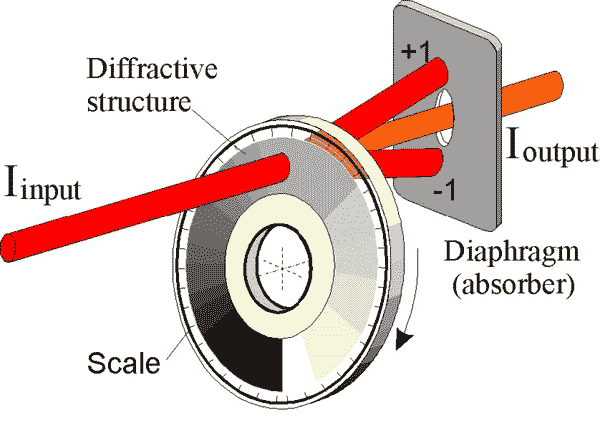

Design of diffractive attenuator on the base of circular diffractive grating

Laser Attenuator
Diffractive attenuators control the power of laser radiation using diffraction gratings. Since phase diffraction gratings do not absorb light they can be used for high-power laser radiation (CW, pulsed). Variation of grating parameters along the substrate results in variable transmission at a given wavelength.
Diffractive Variable Attenuators are based on binary optics technology. Attenuator manufacturing starts from computer design of two-dimensional diffractive gratings using proprietary Diffraction Optics Design Software. Master Grating mask is created using high-resolution laser photo plotters. Final manufacturing process is accomplished using lithographic methods including plasma etching.
Diffractive attenuators are designed for wavelength from deep UV till IR. Damage threshold for these high power attenuators is more than 250W/cm2 in CW and 1000 mJ/cm2 in 10ns pulses.
Laser attenuator for Ti:Sapphire lasers - 532 nm - 1064 nm - Nd:YAG - other wavelengths

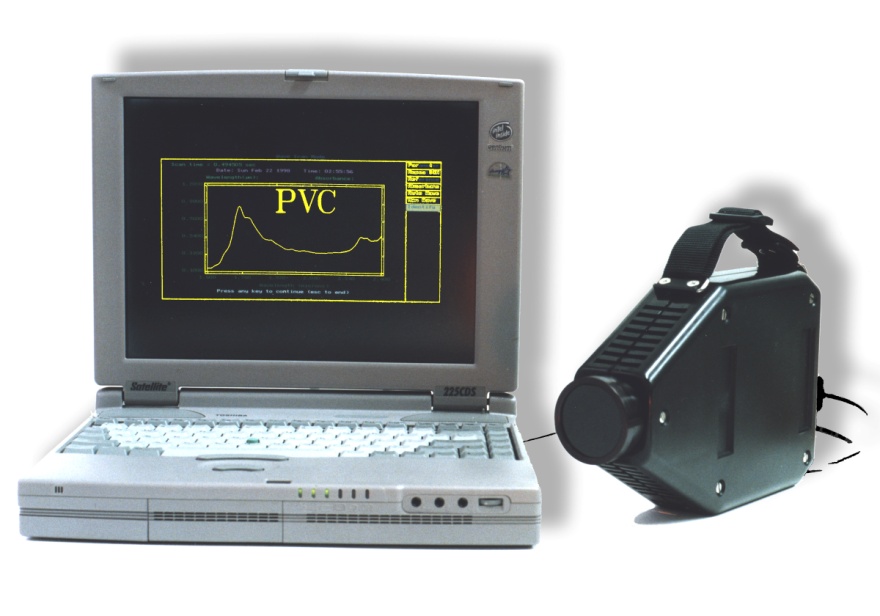

AOTF Infrared Spectrometer
Del Mar Photonics offer a handheld infrared spectrometer based on the acousto-optic tunable filter (AOTF). This instrument is about the size and weight of a video camera, and can be battery operated. This unique, patented device is all solid-state with no moving parts. It has been sold for a wide variety of applications such as liquid fuel analysis, pharmaceutical analysis, gas monitoring and plastic analysis. Miniature AOTF infrared spectrometer uses a crystal of tellurium dioxide to scan the wavelength. Light from a light source enters the crystal, and is diffracted into specific wavelengths. These wavelengths are determined by the frequency of the electrical input to the crystal. Since there are no moving parts, the wavelength scanning can be extremely fast. In addition, specific wavelengths can be chosen by software according to the required algorithm, and therefore can be modified without changing the hardware. After the infrared radiation reflects off of the sample, it is converted into an electrical signal by the detector and analyzed by the computer. Del Mar Photonics is looking for international distributors for RAVEN - AOTF IR spectrometer for plastic identification and for variety of scientific and industrial collaborations to explore futher commercial potential of AOTF technology.
New: AOTF spectrometer to measure lactose, fat and proteins in milk


Open Microchannel Plate Detector MCP-MA25/2

Open Microchannel Plate Detector MCP-MA25/2 - now in stock!
Microchannel Plate Detectors MCP-MA series are an open MCP detectors with one or more microchannel plates and a single metal anode. They are intended for time-resolved detection and make use of high-speed response properties of the MCPs. MCP-MA detectors are designed for photons and particles detection in vacuum chambers or in the space. MCP-MA detectors are used in a variety of applications including UV, VUV and EUV spectroscopy, atomic and molecular physics, TOF mass–spectrometry of clusters and biomolecules, surface studies and space research.
MCP-MA detectors supplied as a totally assembled unit that can be easily mounted on any support substrate or directly on a vacuum flange. They also can be supplied premounted on a standard ConFlat flanges. buy online -
ask for research discount! - how to choose MCP detector
Featured application:
Analysis of biological molecules on surfaces using stimulated desorption photoionization mass spectrometry

Hummingbird EMCCD camera Hummingbird EMCCD camera
The digital Hummingbird EMCCD camera combines high sensitivity, speed and high resolution.
It uses Texas Instruments' 1MegaPixel Frame Transfer Impactron device which provides QE up to 65%.
Hummingbird comes with a standard CameraLink output.
It is the smallest and most rugged 1MP EMCCD camera in the world.
It is ideally suited for any low imaging application such as hyperspectral imaging, X-ray imaging, Astronomy and low light surveillance.
It is small, lightweight, low power and is therefore the ideal camera for OEM and integrators.
buy online

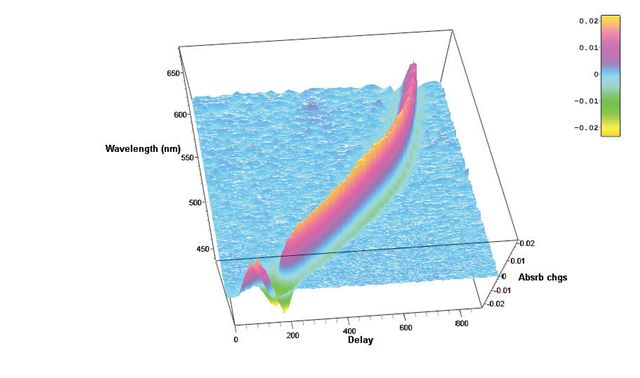

Femtosecond Transient Absorption Measurements system Hatteras Hatteras-D femtosecond  transient absorption data acquisition system
Future nanostructures and biological nanosystems will take advantage not only of the small dimensions of the objects but of the specific way of interaction between nano-objects. The interactions of building blocks within these nanosystems will be studied and optimized on the femtosecond time scale - says Sergey Egorov, President and CEO of Del Mar Photonics, Inc. Thus we put a lot of our efforts and resources into the development of new Ultrafast Dynamics Tools such as our Femtosecond Transient Absorption Measurements system Hatteras. Whether you want to create a new photovoltaic system that will efficiently convert photon energy in charge separation, or build a molecular complex that will dump photon energy into local heat to kill cancer cells, or create a new fluorescent probe for FRET microscopy, understanding of internal dynamics on femtosecond time scale is utterly important and requires advanced measurement techniques.

Reserve a spot in our Ultrafast Dynamics Tools training workshop in San Diego, California.

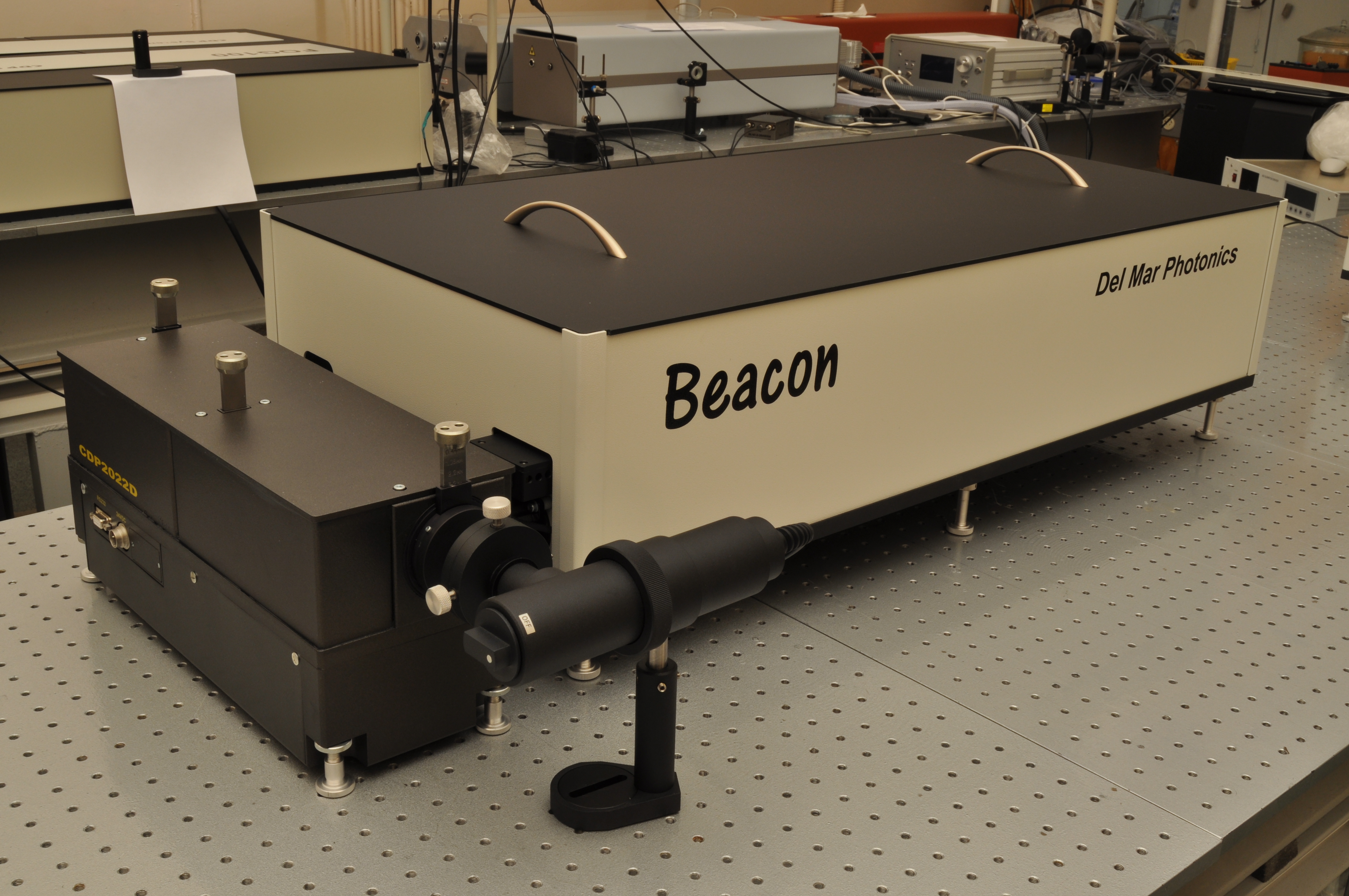

Beacon Femtosecond Optically Gated Fluorescence Kinetic Measurement System - request a quote  - pdf
Beacon together with Trestles Ti:sapphire oscillator, second and third harmonic generators. Femtosecond optical gating (FOG) method gives best temporal resolution in light-induced fluorescence lifetime measurements. The resolution is determined by a temporal width of femtosecond optical gate pulse and doesn't depend on the detector response function. Sum frequency generation (also called upconversion) in nonlinear optical crystal is used as a gating method in the Beacon femtosecond fluorescence kinetic measurement system. We offer Beacon-DX for operation together with Ti: sapphire femtosecond oscillators and Beacon-DA for operation together with femtosecond amplified pulses.
Beacon Trestles - Beacon PHAROS

Reserve a spot in our Ultrafast Dynamics Tools training workshop in San Diego, California.

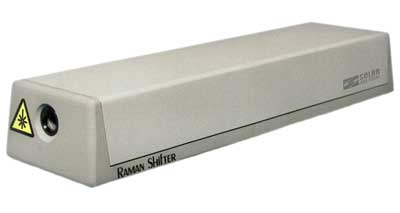

Solid-state Raman Shifter

The Solid State Raman Shifter LZ series uses innovative technology Ba(NO3)2 (shift 1047 cm-1) and KGdWO4 (shift 767.3 and 901.5 cm-1) crystals. The crystals’ unique properties allow their application for Raman frequency conversion ranging from VIS to IR. The nonlinear crystal placed in the optimized cavity ensures high conversion efficiency of the the pump radiation to the 1st, 2nd or 3rd order Stokes, alongside with low generation thresholds. Upon your order mirrors can be installed into the LZ221 Shifter for obtaining definite Stokes, as well as for receiving the multi-line output (generating several components simultaneously) with the total conversion efficiency more than 50%. The design of this device minimizes the needs for user adjustments and allows to easily replace cavity mirrors while re-aligning the Raman Shifter from one wavelength to another.
KGW Raman crystals

Del Mar Photonics adaptive optics and wavefront sensors: ShaH-0620 wavefront sensor with telescope Wavefront Sensors: ShaH Family
A family of ShaH wavefront sensors represents recent progress of Del Mar Photonics in Shack-Hartmann-based technology. The performance of Shack-Hartmann sensors greatly depends on the quality of the lenslet arrays used. Del Mar Photonics. developed a proprietary process of lenslet manufacturing, ensuring excellent quality of refractive lenslet arrays. The arrays can be AR coated on both sides without interfering with the micro-lens surface accuracy. Another advantage of the ShaH wavefront sensors is a highly optimized processing code. This makes possible real-time processing of the sensor data at the rate exceeding 1000 frames per second with a common PC. Due to utilizing low-level programming of the video GPU, it is possible to output the wavefront data with a resolution up to 512x512 pixels at a 500+ Hz frame rate. This mode is favorable for controlling modern LCOS wavefront correctors.
The family of ShaH wavefront sensors includes several prototype models, starting from low-cost ShaH-0620 suitable for teaching laboratory to a high-end high-speed model, ShaH-03500. The latter utilizes a back-illuminated EM-gain CCD sensor with cooling down to -100°C. This makes it possible to apply such a wavefront sensor in astronomy, remote sensing, etc.

Terahertz systems, set ups and components

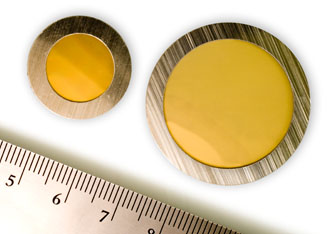

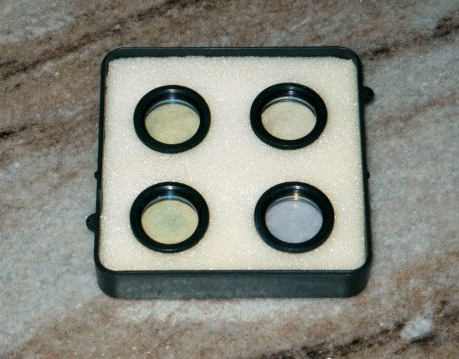

New band pass and long pass THz optical filters based on porous silicon and metal mesh technologies.
Band pass filters with center wavelengths from 30 THz into GHz range and transmissions up to 80% or better. Standard designs
with clear aperture diameters from 12.5 to 37.5 mm.
Long pass filters with standard rejection edge wavelengths from 60 THz into GHz range. Maximum transmission up to 80% or
better, standard designs at 19.0 and 25.4 mm diameters.
Excellent thermal (from cryogenic to 600 K) and mechanical properties
THz products:
Portable Terahertz Source
THz Spectrometer kit with Antenna
THz transmission setup
THz time domain spectrometer Pacifica fs1060pca
THz time domain spectrometer Pacifica fs780pca
THz detectors: Golay cell and LiTaO3 piroelectric detectors
PCA - Photoconductive Antenna as THz photomixer
Pacifica THz Time Domain Spectrometer - Trestles Pacifica
Holographic Fourier Transform Spectrometer for THz Region
Wedge TiSapphire Multipass Amplifier System - THz pulses generation
Terahertz Spectroscopic Radar Mobile System for Detection of Concealed Explosives
Band pass filters with center wavelengths from 30 THz into GHz range
Long pass filters with standard rejection edge wavelengths from 60 THz into GHz range
Generation of THz radiation using lithium niobate
Terahertz crystals (THz): ZnTe, GaAs, GaP, LiNbO3 - Wedge ZnTe

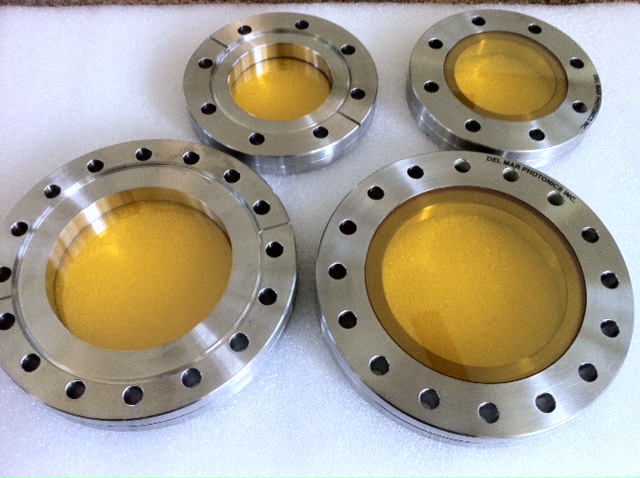

Silicon Viewports for THz radiation - sample specs
Aspheric collimating silicon lens - Aspheric focusing silicon lens
more

iPCA - interdigital Photoconductive Antenna for terahertz waves
Large area broadband antenna with lens array and high emitter conversion efficiency
iPCA with LT-GaAs absorber, microlens array for laser excitation wavelengths
l £  850 nm, adjusted hyperhemispherical silicon lens with a high power conversion efficiency of 0.2 mW THz power / W optical power. The iPCA can be used also as large area THz detector. The two types iPCAp and iPCAs have the same active interdigital antenna area but different contact pad directions with respect to the electrical THz field.
Interdigital Photoconductive Antenna for terahertz waves generation using femtosecond Ti:Sapphire laser

THz books
  Fifth Harmonic Generator for Nd:YAG lasers
The Fifth Harmonic Generator model LG105 is compatible with any pulsed Nd:YAG laser, and is designed to produce UV-radiation at 213 nm. The
Nd:YAG laser, equipped with LG105, is a versatile device, and in many applications can eliminate the necessity for excimer lasers. Solid state technology that does not use toxic gases and costs less gives you the advantages of both consistent, day-to-day operation and low maintenance. A high quality BBO crystal is used in the LG105 as the non-linear element, providing up to 20% conversion efficiency into 213 nm. The non-linear crystal is placed in a special cell ensuring long lifetime of BBO without any degradation or breakage. A harmonic separation system installed in LG105 provides nearly 100 % spectral purity of the output at 213 nm. The LG105 Fifth Harmonic Generator gives you not only high power output but also excellent radiation stability

IntraStage lowers the cost of test data management!

Struggling with gigabytes or terabytes of test data?
IntraStage easily transforms test data from disparate sources into web-based quality metrics and engineering intelligence you can use.

Contact us today to discuss your test management requirements and specifications of your application.



Training Workshops

Come to San Diego next summer! Attend one of our training workshops in San Diego, California during summer 2011
Del Mar Photonics has presented training workshops for customers and potential customers in the past 3 years.
Our workshops cover scientific basics, technical details and provide generous time for hands-on training.
Each workshop is a three-day seminar conducted by professional lecturer from 10am to 4pm. It includes lunch, as well as a training materials. We have also reserved two days for Q&A sessions, one-on-one system integration discussions, social networking, and San Diego sightseeing.

The following training workshops will be offered during this summer:
1. Femtosecond lasers and their applications
2. CW narrow line-width widely tunable lasers and their applications
3. Adaptive optics and wavefront sensors

4. Ultrafast (femtosecond) dynamics tools

Featured Customer

Trestles LH10-fs/CW laser system at UC Santa Cruz Center of Nanoscale Optofluidics

Del Mar Photonics offers new Trestles fs/CW laser system which can be easily switched from femtosecond mode to CW and back. Having both modes of operation in one system dramatically increase a number of applications that the laser can be used for, and makes it an ideal tool for scientific lab involved in multiple research projects.
Kaelyn Leake is a PhD student in Electrical Engineering. She graduated from Sweet Briar College with a B.S. in Engineering Sciences and Physics. Her research interests include development of nanoscale optofluidic devices and their applications. Kaelyn is the recipient of a first-year QB3 Fellowship. In this video Kaelyn talks about her experimental research in nanoscale optofluidics to be done with Trestles LH laser.

Reserve a spot in our femtosecond Ti:Sapphire training workshop in San Diego, California during summer 2011

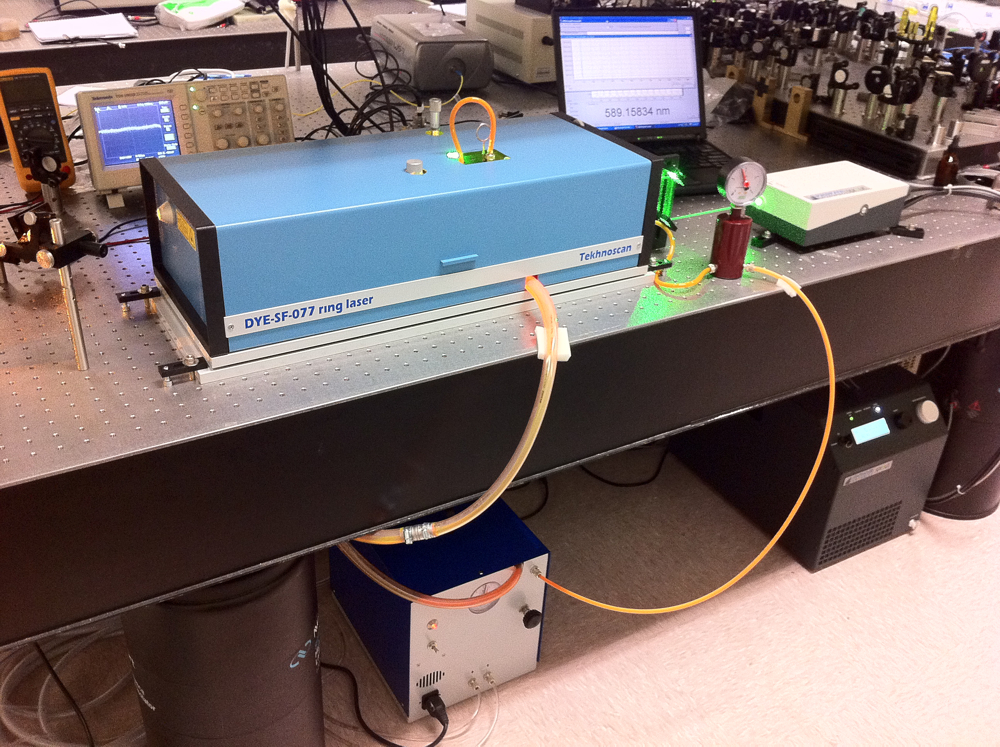

Frequency-stabilized CW single-frequency ring Dye laser DYE-SF-077 pumped by DPSS DMPLH laser installed in the brand new group of Dr. Dajun Wang at the The Chinese University of Hong Kong.
DYE-SF-077 features exceptionally narrow generation line width, which amounts to less than 100 kHz. DYE-SF-077 sets new standard for generation line width of commercial lasers. Prior to this model, the narrowest line-width of commercial dye lasers was as broad as 500 kHz - 1 MHz. It is necessary to note that the 100-kHz line-width is achieved in DYE-SF-077 without the use of an acousto-optical modulator, which, as a rule, complicates the design and introduces additional losses. A specially designed ultra-fast PZT is used for efficient suppression of radiation frequency fluctuations in a broad frequency range. DYE-SF-077 will be used in resaerch of Ultracold polar molecules, Bose-Einstein condensate and quantum degenerate Fermi gas and High resolution spectroscopy

630nm

Other News

CW single-frequency ring TiSapphire laser operating at 780 nm, 800 nm, 850 nm, or 920 nm with several Watts of power
Optical Society of Southern California meeting at UCSD OSSC 2011-04-27
Del Mar Photonics Nd:YAG laser system at the Universidad Autónoma de Nuevo León, Monterrey, Mexico
Wedge 50 Multipass Amplifier pumped with a Darwin-527-30-M DPSS Laser ordered by Hong Kong customer
New Trestles LH10-fs/CW femtosecond+CW laser ready for delivery to the University of California Santa Cruz
Trestles femtosecond Ti:Sapphire laser delivered to North Carolina State University
Del Mar Photonics sponsor IONS (International OSA Network of Students) conference IONS-NA-2 in Tucson, Arizona IONS-NA-2 website
Best talk and best poster awards at IONS-Moscow 2010 conference sponsored by Del Mar Photonics
Watch Del Mar Photonics videos!
Del Mar Photonics is now on Twitter!

Del Mar Photonics featured components

Del Mar Photonics continuously expands its components portfolio.

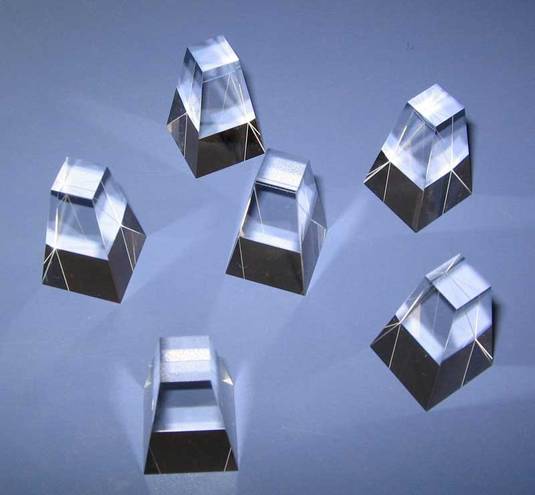

Solar Prisms for Concentrating Photovoltaic Systems (CPV)
Solar cells made of compound semiconductors such as gallium arsenide are very expensive. Usually very small cells are installed and various means such as mirrors, lenses, prisms, etc..are used  to concentrate sunlight on the cells. Concentration photovoltaic technology (CPV) uses the solar radiation with an efficiency of 40%, double that of conventional solar cells
Del Mar Photonics design custom Concentrating Photovoltaic Systems (CPV) and supply variety of the optical components for CPV such as solar prisms shown in the picture.
hexagonal light pipes, optical rods
High Concentration Photovoltaic Panel (HCPV) - request for information
Solar Glass reflectors & optics for solar power generation & solar heating
Ultrafast studies of charge carrier dynamics in nanomaterials and relevance to solar energy conversion
CdTe Solar Cells

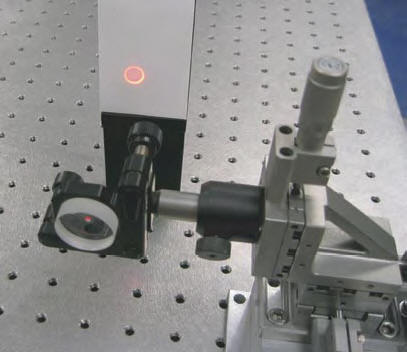

Axicon Lens
Axicon lens also known as conical lens or rotationally symmetric prism is widely used in different scientific research and application. Axicon can be used to convert a parallel laser beam into a ring, to create a non diffractive Bessel beam or to focus a parallel beam into long focus depth.
Del Mar Photonics supplies axicons with cone angles range from 130° to 179.5° for use with virtually any laser radiation. We manufacture and supply axicons made from BK7 glass, fused silica and other materials.

download brochure -
request a quote
Del Mar Photonics offers optical elements made of high quality synthetically grown Rutile Titanium Dioxide crystals. Rutile (TiO2) coupling prisms
Del Mar Photonics offers optical elements made of high quality synthetically grown Rutile Titanium Dioxide crystals. Rutile’s strong birefringency, wide transmission range and good mechanical properties make it suitable for fabrication of polarizing cubes, prisms and optical isolators. Boules having high optical transmission and homogeneity are grown by proprietary method. Typical boules have 10 - 15 mm in dia. and up to 25 mm length. Optical elements sizes - from 2 x 2 x 1 mm to 12.7 x 12.7 x 12.7 mm. Laser grade polish quality is available for finished elements. So far we the largest elements that we manufactured are 12 x15 x 5 mm, in which optical axis is parallel to 15 mm edge, 5 mm is along beam path, 12 x 15 mm faces polished 20/10 S/D, one wave flatness, parallelism < 3 arc.min. (better specs. available on request).
more details - download brochure -
request a quote - properties incl. refractive index - buy online
Cylindrical and hemispherical lenses from rutile TiO2
Rutile retroreflectors - PBS
Rutile windows
TiO2 single crystal - quote - TiO2-5-5-20 TiO2 single crystal AR 700-900 nm - TiO2-5-5-20 TiO2 single crystal AR 1500-1700 nm
Rutile prisms in production: Brewster angle rutile (TiO2) prism -
applications

Lithium Tantalate (LiTaO3)
Lithium Tantalate exhibits unique electro-optical, pyroelectric and piezoelectric properties combined with good mechanical and chemical stability and , wide transparency range and high optical damage threshold. This makes LiTaO3 well-suited for numerous applications including electro-optical modulators, pyroelectric detectors, optical waveguide and SAW substrates, piezoelectric transducers etc.
LiTaO3 wafer SAW grade - Lithium Tantalate, LiTaO3 - crystal - elements for pyroelectric detector - EOM - EO crystal - wafers - Lithium Tantalate Substrates for Pyroelectric Detectors - y-cut LiTaO3 - LiTaO3 properties - Electro – Optic Pockels Cells - Optical Waveguide Substrates - Pyroelectric Detector Substrates - Piezoelectric Transducers - wafers- Lithium Tantalate frequency filter - detector - Lithium Tantalate wafers and crystals - LiTaO3 thin substrates - cylindrical z-cut LiTaO3 crystal - online store


Sapphire components
Sapphire Circular Windows - Square & Rectangle - Rods
Sapphire & Ruby Rings - Sapphire & Ruby Balls - Sapphire & Ruby Nozzles
Sapphire Lenses - Ball & Seat - Special Products - Sapphire Vee & Cup Jewels
Sapphire Ceramics - Ceramic Sleeves - Ceramic Holes - Ceramic Rods
Sapphire & Ruby Orifices - Sapphire & Ruby Tubes - Sapphire Components
Sapphire Half Round Rod - Sapphire Windows - Rods & Tubes - Special Part
Sapphire Prism - 5x5x5 - Sapphire Chisel -
Sapphire Square Rod
Generation of white-light continuum
Sapphire rods for HPLC: Agilent Technologies - Beckman Coulter, Inc. - Cecil Instruments - Dionex Corp  - Hitachi, Ltd. - PerkinElmer, Inc. - Shimadzu Scientific Instruments - Thermo Fisher Scientific - Varian, Inc. - Waters Corporation

Vacuum viewport

Del Mar Photonics offer a range of competitively priced UHV viewports , Conflat, ISO or KF including a variety of coatings to enhance performance. Del Mar Photonics viewports are manufactured using advanced techniques for control of special and critical processes, including 100 percent helium leak testing and x-ray measurements for metallization control. Windows Materials include: Fused silica, Quartz , Sapphire , MgF2, BaF2, CaF2, ZnSe, ZnS, Ge, Si, Pyrex. Standard Viewing diameters from .55" to 1.94 ".
Coating - a range of custom coatings can applied - which include
- Single QWOT
- Broad Band AR
- V coatings
- ITO
- DLC (Diamond like coating)
more details - request a quote - High-Vacuum System for High Power Lasers - AR Coated Zinc Selenide Vacuum Viewport



Zinc Selenide optical components
ZnSe window diam 12.7 mm, thickness 1 mm - diam 20 mm x 3 mm thick - diam 25.4 mm x 3 mm thick
ZnSe Zinc Selenide meniscus lenses
ZnSe Zinc Selenide Plane-Convex lenses
ZnSe Zinc Selenide High Power Plane-Convex lenses
related product: Gold Plated Silicon Mirrors
IR windows for a thermal imager on a vacuum system - FTIR|
IR Beamsplitters: ZnSe 70/30 beamsplitter for CO2 laser - 50/50 at 45 degrees
ZnSe window mounted in a 4.5” conflat for an IR photography application
ZnSe prisms  - pair of prisms for pulse compression - ZnSe cross-disperser prisms -
ZnSe rhomb
cleaning - vacuum viewport - AR coated
Broadband AR coating (BBAR 350-700nm, 450-800nm, 650-1050nm, 1050-1620nm) for Vacuum Viewport
IR UHV view ports with Broad Band Anti-reflection (BBAR) coating for IR wavelength range
ZnSe viewport CF35 UHV 2.0 to 5.0 micron wavelength range

Elliptical optics from ZnSe
ZnSe window for an infrared temperature detector


NARROW-BAND HOLOGRAPHIC FILTERS are intended for suppression of powerful beams in research and in engineering, in particular, in laser spectroscopy, and also for protection from blinding and damaging by laser radiation various photo receiver devices and operator's eyes.

Unlike conventional interference filters, which are made by vacuum evaporation techniques, holographic filters are fabricated by recording interference patterns formed between two mutually coherent laser beams. Since all layers are recorded simultaneously within a thick stack, the optical density of the notch filter is high and its spectral bandwidth can be extremely narrow. Also, since the layering profile is sinusoidal instead of square wave, holographic notch filters are free from extraneous reflection bands and provide significantly higher laser damage thresholds.





Hydrogen Thyratrons are used in such devices as radars with different power levels, high-power pulsed technical, electrophysical, medical devices and lasers. Sophisticated design and high quality ceramic-metal envelope determines long lifetime and very accurate and reliable operation of hydrogen thyratrons under wide range of environmental conditions. DMPTGI 1-50/6
Applications:
- radars
- pulsed  lasers power supplies
- medical apparatus
- electrophysical instrumentation
- ignitors
Triggered Three-Electrode Spark Gap Switches are ceramic-metal sealed off gas discharge trigatron-type devices with a co-axial trigger electrode. These Gas Discharge Tubes contain no mercury and, due to an advanced design, feature high reliability and a long lifetime being operating under wide range of environmental conditions.
Applications:
- pulsed installation for processing materials
- installations with plasma focus
- pulse power supplies for lasers and other pulse equipment
- medical apparatus such as lithotriptors and defibrillators
- processing systems for petroleum wells
Spark gaps for variety of applications

Hydrogen Thyratrons - Deuterium Thyratrons - Untriggered Spark Gaps - Triggered Spark Gaps - X-ray tube - DMPTGI 1-50/6 - RU-62-TSG - RU-77-TSG - RU-69-TSG - High Voltage Pulse Trigger transformer DMPTT511A
Ignitor for Igniting a 250W Xenon ARC
Flyback type trigger transformer to operate spark gap - quote
Triggered spark gaps with standoff of up to 40 kV, a peak current of around 10 kA, a pulse energy of 100 J, and a pulse rep rate of 20 Hz



DMPTGI 1-50/6 thyratron request a quote
Anode voltage: 1-6 kV
Reverse anode voltage: 0.5-1.5 kV
Anode current in pulse: 50 A
Anode current average: 0.12 A
Current anode impulse time:0.2-4.0 microseconds
Steepness of anode current pulse edge: 0.25 x 109 A/s
Pulse repetition rate: 1100 pulse/s
Warm-up time: 3 minutes
Heater current: 7 A
Diameter: 50 mm
Height: 76 mm
NOTE: Thyratron operate at pulse repetition rate to 50000 pulse/s on condition of decrease pulse and average power.




Trigger Transformers
Del Mar Photonics supply trigger transformers for triggered spark gaps and other applications. Contact us to today to discuss your application or requesta  quote.
Trigger Transformers are used to provide a fast high voltage pulse up to 30kV/µs and more. This high voltage pulse is applied to the trigger electrode to initiate switching action in the three-electrode spark gaps. Either positive or negative pulses can be obtained from all of the transformers.

Trigger transformer to operate spark gap flyback type

We are looking forward to hear from you and help you with your optical and crystal components requirements. Need time to think about it? Drop us a line and we'll send you beautiful Del Mar Photonics mug (or two) so you can have a tea party with your colleagues and discuss your potential needs.



Sign Up Today to receive Del Mar Photonics newsletter!

* required

*






Del Mar Photonics, Inc.
4119 Twilight Ridge
San Diego, CA 92130
tel: (858) 876-3133
fax: (858) 630-2376
Skype: delmarphotonics
sales@dmphotonics.com
