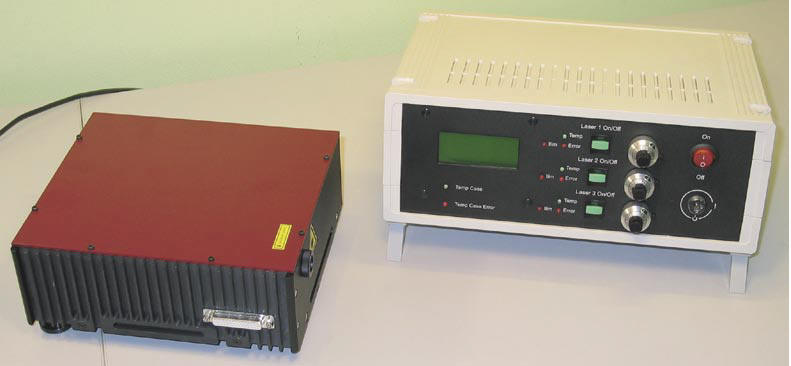

780 nm and 1560 nm Femtosecond Fiber Laser Buccaneer SHG 300/120
Wavelengths 1560 nm & 780 nm (mechanically switchable) - request a quote

I. Wavelength 1560 nm
Center wavelength : 1560 ± 30 nm
Average Output Power : > 300mW
Pulse Width : 100 ± 20 fs (fixed OR variable)
Repetition Rate : 80-100 MHz (fixed OR variable)
Linear polarization : >95 %
Beam shape : TEMoo,
M2 : <1.2
Beam dia (Φ) : < 4 mm (FWHM)
Beam divergence : < 2 m rad
Output coupling : free- space

II. Wavelength 780nm
Center wavelength : 780 ± 30 nm
Average Output Power : > 120mW
Pulse Width : 100 ± 20 fs (fixed OR variable)
Repetition Rate : 80-100 MHz (fixed OR variable)
Linear polarization : >95%
Beam shape : TEMoo
M2 : <1.2
Beam dia (Φ) : < 3 mm (FWHM)
Beam divergence : < 2 m rad
Output coupling : free- space
Control Unit
Electrical monitor output
Interfaces : USB, RS232
Operating line voltage : 220 ± 20 VAC, 50 Hz.

780 nm and 1560 nm Femtosecond Fiber Laser Buccaneer SHG 160/80
