Del Mar Photonics
RFQ for Rubidium-blind Optical Lattice Laser for Rubidium/Ytterbium Cold Atom Mixture experiments, meeting or exceeding the following required minimum specifications.
1. Power must be 200mW or higher, over the wavelength range
2. Wavelength must be centered at 423nm, coarse tunable over 3nm;
3. Frequency linewidth must be 500 kHz or lower, with tuning capability to line narrow;
4. Must have mode hop free fine tuning range of 10 GHz or greater;
5. Must have linear polarization.
Del Mar Photonics proposal:
June 12, 2011
"Tisarius-D" laser system for cold atom experiments at 423 nm
Tisarius-D laser system includes ultra-narrow linewidth Ti:Sapphire laser, model "TIS-SF-777", and super-effective resonant frequency doubler, model "FD-SF-07".

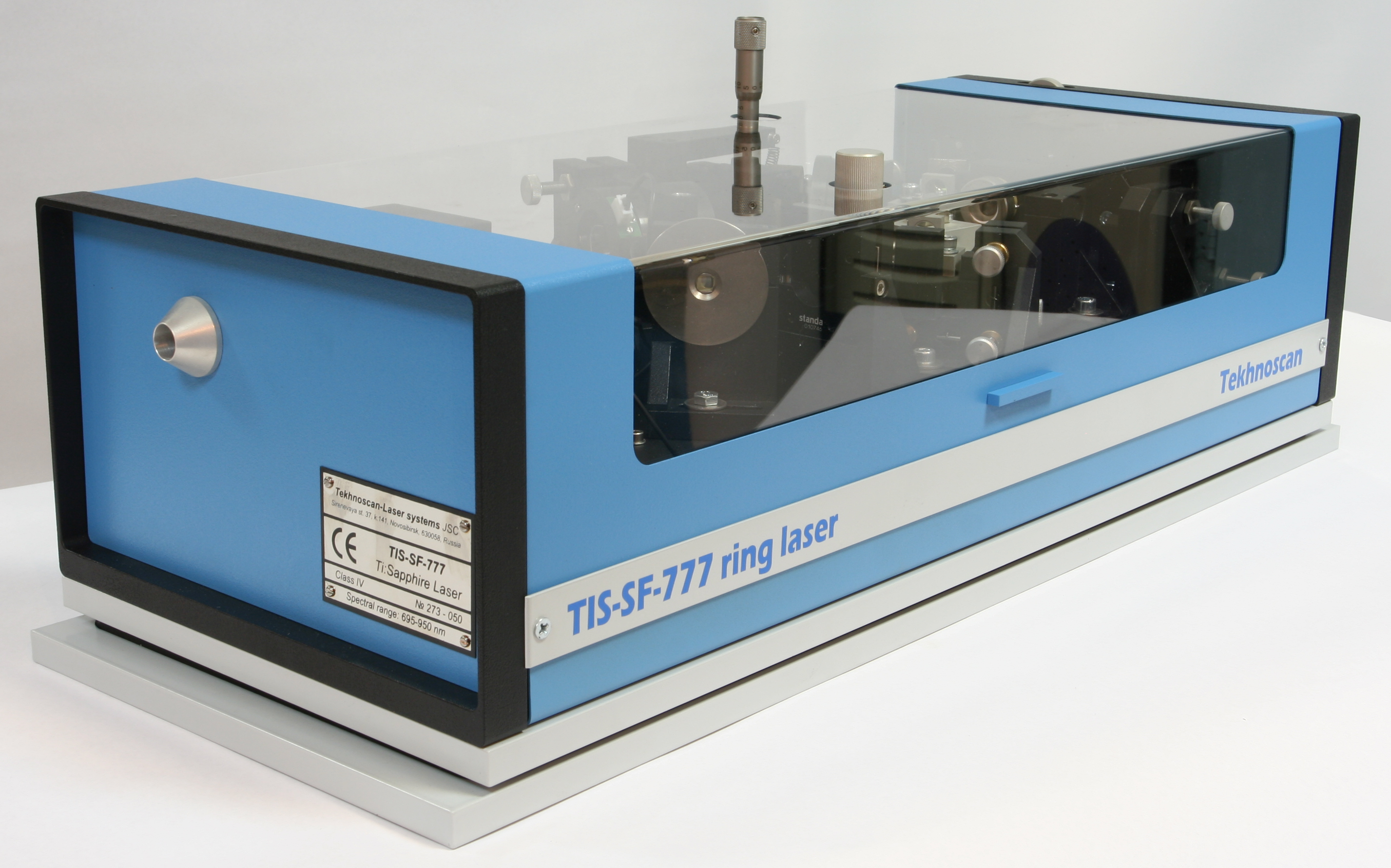

Actively frequency-stabilized CW single-frequency ring Ti:Sapphire laser, model TIS-SF-777
Unique TIS-SF-777 laser has more narrow linewidth for Ti:Sa lasers on the present market. TIS-SF-777 laser has super-narrow linewidth (< 10 kHz/sec) and unique Auto Re-lock function which is extremely useful in a work with frequency stabilized laser.
Wavelength range, power
Actively frequency-stabilized, continuous-wave, single-frequency ring Titanium-Sapphire laser, model "TIS-SF-777":
Wavelength ranges: 846 +/-10 nm
Linewidth: < 10 kHz/sec rms
Output power: > 1,6W@846+/-10nm at 10W pump (532 nm, TEMoo)
Smooth scanning: > 5 GHz
Frequency drift: < 40 MHz/hour
Polarization: horizontally polarized output

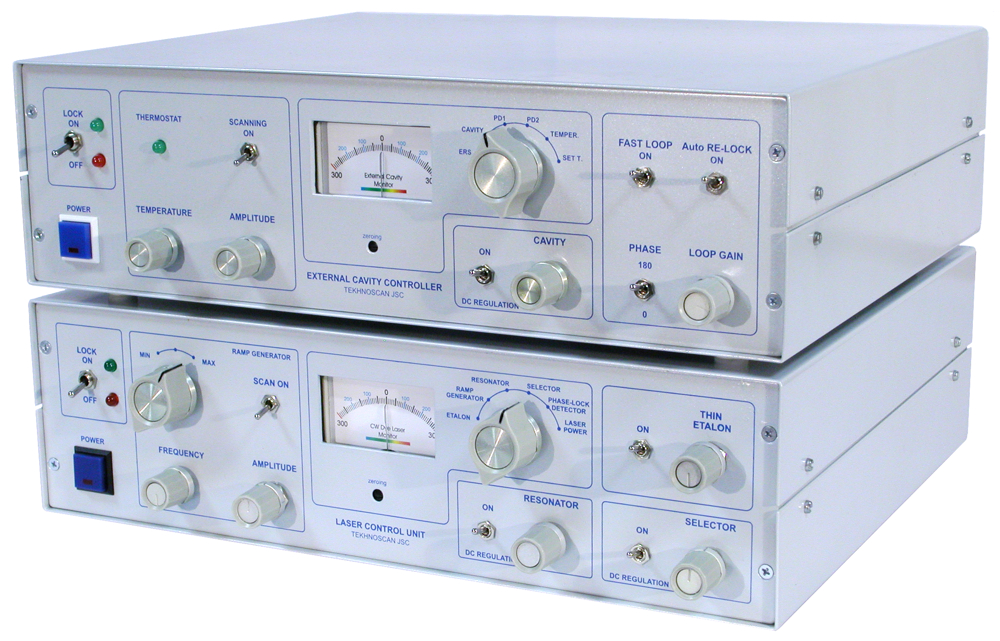

Auto-Relock function, external lock capability for stabilization to an absolute reference
Price of the TIS-SF-777 Ti:Sapphire laser with above mentioned specifications, including delivery, installation, teaching and 12-months warranty period: 84,950 USD.
Accessories & Options:
Extra optics set (695-770 nm or 850-950 nm or 950-1050 nm): 4,450 USD
Smooth scanning > 18 GHz: 3,750 USD
Time of delivery: 12 weeks ARO.
Resonant Frequency Doubler, model "FD-SF-07"
Unique FD-SF-07 doubler is the most efficient resonant frequency doubler for CW single-frequency lasers in the present market.
Wavelength range, conversion efficiency
Resonant Frequency Doubler, model "FD-SF-07":
Wavelength range: 830-860 / 415 - 430 nm
Conversion efficiency: > 25% of TiSa laser CW single-frequency input at 1W 846nm.
Linewidth of second harmonic radiation: < 20 kHz
Smooth scanning: > 10 GHz
Automatic relock electronics, temperature stabilization of crystal, input coupling optics, harmonic separation optics, and output beam-shaping optics.
Price of the FD-SF-07 doubler with above mentioned specifications, including including delivery, installation, teaching and 12-months warranty period: 47,950 USD.
Time of delivery: 12 weeks ARO.
Indicated are standard specification and list prices. Custom options are available!
