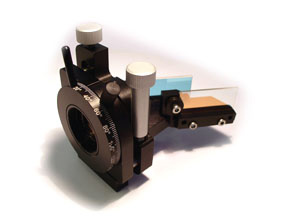

Variable Attenuator for Femtosecond laser pulses VAFS-ST buy online

Divides laser beam into two parallel beams of manually adjustable intensity ratio
Low dispersion for femtosecond and high energy laser pulses
Large dynamic range
Negligible beam deviation
High Optical damage threshold

This variable attenuator/beamsplitter consists of 2 high-performance polarizing optics components placed in precision opto-mechanical holder. The variable attenuator/beamsplitter incorporates 2 high-performance Brewster type polarizers, which reflect s-polarized light while transmitting p-polarized light. These two Brewster type polarizers are housed in specially designed opto-mechanical adapter. This adapter allows to use round shape or rectangular shape Brewster type polarizers.
A rotating quartz λ/2 waveplate is placed in the incident polarized laser beam. The intensity ratio of those two beams may be continuously varied without alteration of other beam parameters by rotating the waveplate. The intensity of either exit beam, or their intensity ratio, can be controlled over a wide dynamic range. P-polarization could be selected for maximum transmission, or high-purity s-polarization could be reflected when maximum attenuation of the transmitted beam takes place.


Central wavelengths 780, 800, 1064 nm or other
Beam deviation 40*10^(-6) rad, average over range
Aperture diameter 20 mm
Damage Threshold 1 J/cm2 pulsed at 1064 nm, typical
Antireflection Coating R <0.25% all entrance and exit surfaces
Time dispersion t<4fs for Ti:Sapphire laser pulses
Polarization Contrast (after 1st polarizer) 1:190
Polarization Contrast (after 2nd polarizer) 1:7000

Del Mar Photonics

Femtosecond Ti:Sapphire oscillators and amplifiers from Del Mar Photonics

Do you plan to build a femtosecond set up based on Ti:Sapphire laser?

Del Mar Photonics is please to announce several new Ti:Sapphire oscillator and amplifier products. Now Del Mar Photonics' customers can choose one of the following oscillator and amplifier options:

Femtosecond Ti:Sapphire Oscillator

1. If you already have a CW pump laser or plan to buy specific model and need only Ti:Sapphire oscillator we can offer our stand alone Ti:Sapphire lasers Trestles, that do not include pump laser and can be customized for any suitable CW pump.

Please indicate required pulse duration (standard models have 20 fs, 50 fs and 100 fs pulses) and tuning range. Let us know what kind of pump laser you have (make/model) so we can confirm what output parameters can be achieved.

2. If you do not have a pump laser and want to buy complete system we can offer you one of the following:
One-box system Trestles Finesse that include Trestles mini Ti:Sapphire oscillator and built in DPSS pump laser

When choosing specific Trestles Finesse model please indicate required CW pump power (4W or 6W), Ti:Sapphire pulse duration and required tuning range (or tuning range, where you want to achieve maximum performance)

Tuning range can be customized at the factory by choosing one of standard or custom made optics set. Typical tuning curves for 4W CW pump laser for two standard optics sets are shown in the Trestles Finesse brochure. For example, with 4W CW pump laser and long-wave mirrors set tuning range can be extended up to 940nm. With 6W CW pump laser tuning range can be extended up to 980nm.

Femtosecond Ti:Sapphire Amplifier

1. We offer integrated oscillator/amplifier system Teahupoo Rider. Teahupoo Rider is a fully-integrated all-in-one-box system that includes Trestles Finesse oscillator or Buccaneer SHG diode-pumped fiber oscillator, pulse stretcher, regenerative amplifier pumped by multi kHz Nd:YAG pump laser and pulse compressor. Teahupoo Rider has a factory preinstalled repetition rate of 2, 5 or 10kHz and ideal for low cost femtosecond micromachining systems, OPA pumping, ultrafast spectroscopy and variety of applications in life sciences.

2. If you already have a Ti:Sapphire oscillator, we can offer you stand alone Ti:Sapphire amplifier. Two standard models are available: Wedge M multipass or Wedge R regenerative.

Ti:Sapphire oscillator and multipass amplifier

Each amplifier is customized to the customer's amplifier pump laser.

2. Custom Teahupoo Rider systems with a pump laser of your choice are also available. Depending on the required specifications we can recommend a pump laser and make required adjustments for optimum performance.
The following specifications can be achieved:
Repetition rate: single pulses, 10 Hz up to 10kHz
Pulse duration: 100fs, 50fs, 30fs, <30fs
Pulse energy: from 100 mJ per pulse to few mJ per pulse
Tunability: both fixed wavelength and tunable options are available - please indicate required tuning range.

Del Mar Photonics

Design of diffractive attenuator on the base of circular diffractive grating

Laser Attenuator
Diffractive attenuators control the power of laser radiation using diffraction gratings. Since phase diffraction gratings do not absorb light they can be used for high-power laser radiation (CW, pulsed). Variation of grating parameters along the substrate results in variable transmission at a given wavelength.
Diffractive Variable Attenuators are based on binary optics technology. Attenuator manufacturing starts from computer design of two-dimensional diffractive gratings using proprietary Diffraction Optics Design Software. Master Grating mask is created using high-resolution laser photo plotters. Final manufacturing process is accomplished using lithographic methods including plasma etching.
Diffractive attenuators are designed for wavelength from deep UV till IR. Damage threshold for these high power attenuators is more than 250W/cm2 in CW and 1000 mJ/cm2 in 10ns pulses.
Laser attenuator for Ti:Sapphire lasers - 532 nm - 1064 nm - Nd:YAG - other wavelengths



Del Mar Photonics is your one stop source for ultrafast (femtosecond) as well as continuum wave (CW) narrow linewidth Ti:Sapphire lasers Trestles LH Ti:Sapphire laser
Trestles LH is a new series of high quality femtosecond Ti:Sapphire lasers for applications in scientific research, biological imaging, life sciences and precision material processing. Trestles LH includes integrated sealed, turn-key, cost-effective, diode-pumped solid-state (DPSS). Trestles LH lasers offer the most attractive pricing on the market combined with excellent performance and reliability. DPSS LH is a state-of-the-art laser designed for today’s applications. It combines superb performance and tremendous value for today’s market and has numerous advantages over all other DPSS lasers suitable for Ti:Sapphire pumping. Trestles LH can be customized to fit customer requirements and budget.
Trestles LH plus OPO (Optical Parametric Oscillator)

Reserve a spot in our Femtosecond lasers training workshop in San Diego, California. Come to learn how to build a femtosecond laser from a kit

DPSS DMP LH series lasers will pump your Ti:Sapphire laser. There are LH series lasers installed all over the world pumping all makes & models of oscillator. Anywhere from CEP-stabilized femtosecond Ti:Sapphire oscillators to ultra-narrow-linewidth CW Ti:Sapphire oscillators. With up to 10 Watts CW average power at 532nm in a TEMoo spatial mode, LH series lasers has quickly proven itself as the perfect DPSS pump laser for all types of Ti:Sapphire or dye laser.
Ideal for pumping of:

Trestles LH Ti:Sapphire laser - ULN ultra low-noise option
T&D-scan laser spectrometer based on narrow line CW Ti:Sapphire laser

Pismo pulse picker
The Pismo pulse picker systems is as a pulse gating system that lets single pulses or group of subsequent pulses from a femtosecond or picosecond pulse train pass through the system, and stops other radiation. The system is perfectly suitable for most commercial femtosecond oscillators and amplifiers. The system can pick either single pulses, shoot bursts (patterns of single pulses) or pick group of subsequent pulses (wider square-shaped HV pulse modification). HV pulse duration (i.e. gate open time) is 10 ns in the default Pismo 8/1 model, but can be customized from 3 to 1250 ns upon request or made variable. The frequency of the picked pulses starts with single shot to 1 kHz for the basic model, and goes up to 100 kHz for the most advanced one.
The Pockels cell is supplied with a control unit that is capable of synching to the optical pulse train via a built-in photodetector unit, while electric trigger signal is also accepted. Two additional delay channels are available for synching of other equipment to the pulse picker operation. Moreover, USB connectivity and LabView-compatible drivers save a great deal of your time on storing and recalling presets, and setting up some automated experimental setups. One control unit is capable of driving of up to 3 Pockels cells, and this comes handy in complex setups or contrast-improving schemes. The system can also be modified to supply two HV pulses to one Pockels cell unit, making it a 2-channel pulse picker system. This may be essential for injection/ejection purposes when building a regenerative or multipass amplifier system.
